Electrically And Hydraulically Hydraulic Control Valve 4WEH16E50B 6EG24NETZ5L

1Unit
MOQ
USD45/Unit
Price
Electrically And Hydraulically Hydraulic Control Valve 4WEH16E50B 6EG24NETZ5L
Features Gallery Product Description Chat Now
Features
Specifications
Body Material: Cast Iron
Standard Or Nonstandard: Standard Hydraulic
Operatingpressure: 31.5MPa
Warranty: 12 Months
Package: Carton Box+wooden Case
Installation Position: Any
Package Size: 20.00cm * 20.00cm * 15.00cm
Feature: High Efficiency
Highlight:

Electrically Hydraulic Control Valve

,

4WEH16E50B

,

6EG24NETZ5L
Basic Infomation
Place of Origin: China
Brand Name: RUNHE
Certification: RoHS
Model Number: 4WEH16E50B 6EG24NETZ5L
Document: 4WEH16E50B 6EG24NETZ5L Cont...ve.pdf
Payment & Shipping Terms
Packaging Details: 45*32*30
Delivery Time: 2weeks
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 60000pcs/year
Product Description

4WEH16E50B 6EG24NETZ5L Electrically and Hydraulically Controlled Hydraulic Valve

The 4WEH16E50B 6EG24NETZ5L Hydraulic Valve is used for electronically switching the direction of hydraulic oil and adjusting the branch pressure. It is compatible with industrial machine tools, hydraulic stations, automation equipment and other systems, such as controlling the extension and retraction of hydraulic cylinders, while protecting the circuit from overpressure.


Product Parameters

Electromagnetic coil voltage: DC24V (G24)
Coil power: Approximately 28W (when energized)
Electromagnet type: Wet electromagnet (N)
Pilot control pressure range: 1.4–6.3 MPa (pilot oil pressure)
Valve core function: O-type (neutral position P/T/A/B fully enclosed)

Parameter Items Specifications:
 Nominal Diameter 16 mm
Rated Flow Rate 200 L/min (maximum 315 L/min)
Nominal Pressure 31.5 MPa (315 bar)
Maximum Pressure (P Port) 31.5 MPa
Maximum Pressure (A/B Port) 31.5 MPa
Maximum Pressure (T Port) 21 MPa
Medium Viscosity Range 10-1000 mm'/s
Operating Temperature Range -20°C -80°C (short-term 100°C)



Company Profile

Runhe Hydraulics is a professional hydraulic valve supplier, offering hydraulic control valves and solenoid valves with full specs. We feature precise performance, strict quality control, OEM service, global delivery and professional after-sales for industrial hydraulic systems.

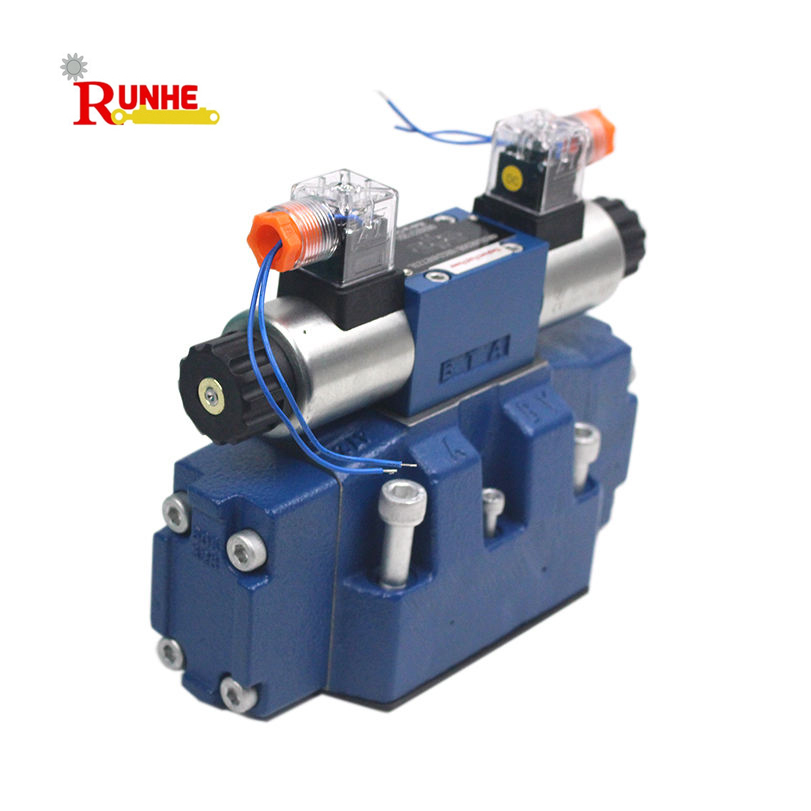

Electrically And Hydraulically Hydraulic Control Valve 4WEH16E50B 6EG24NETZ5L 0

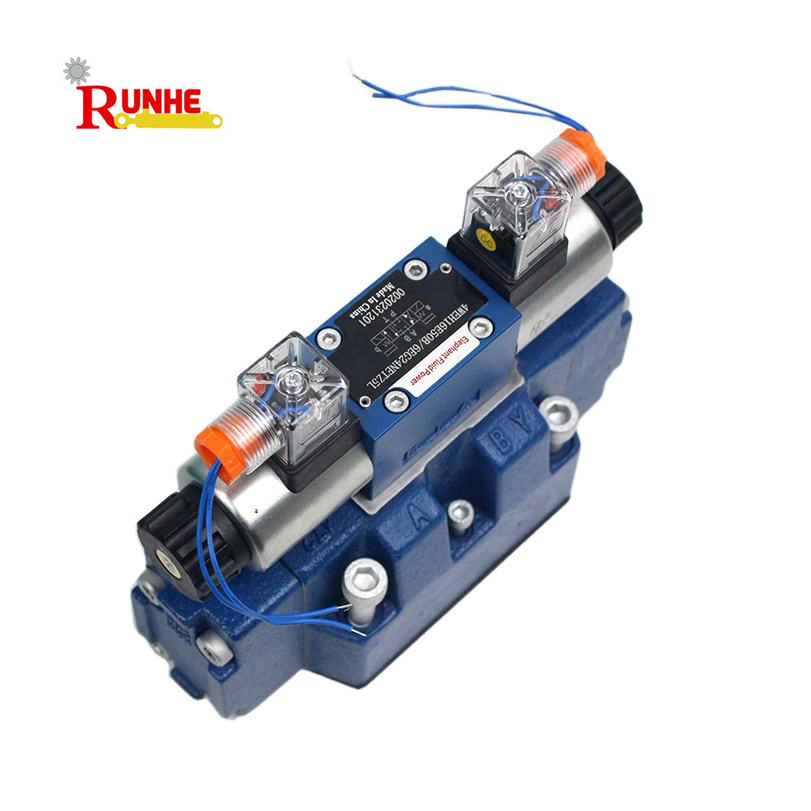

Electrically And Hydraulically Hydraulic Control Valve 4WEH16E50B 6EG24NETZ5L 1

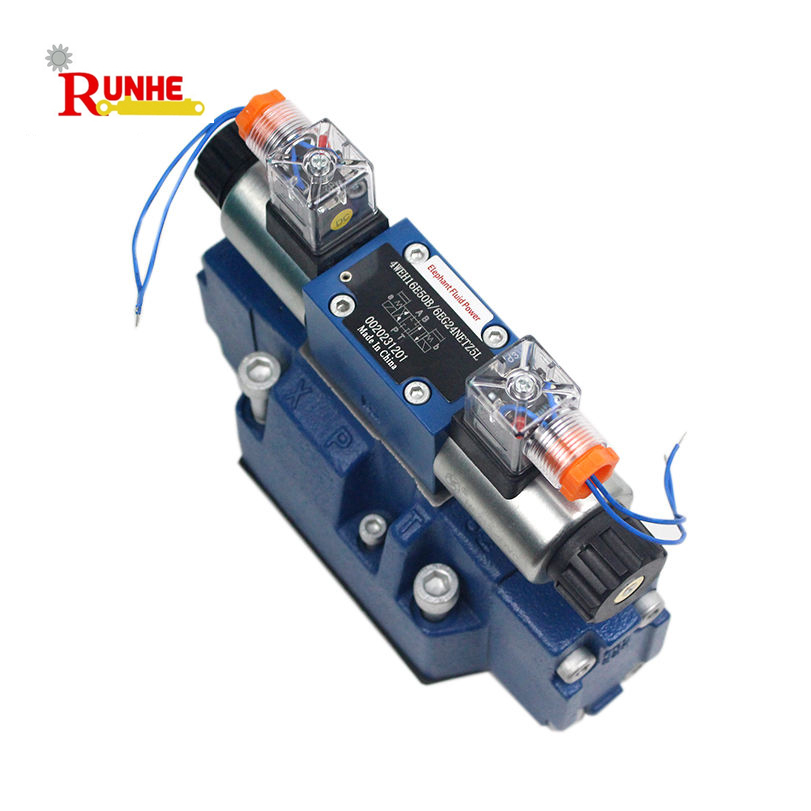

Electrically And Hydraulically Hydraulic Control Valve 4WEH16E50B 6EG24NETZ5L 2

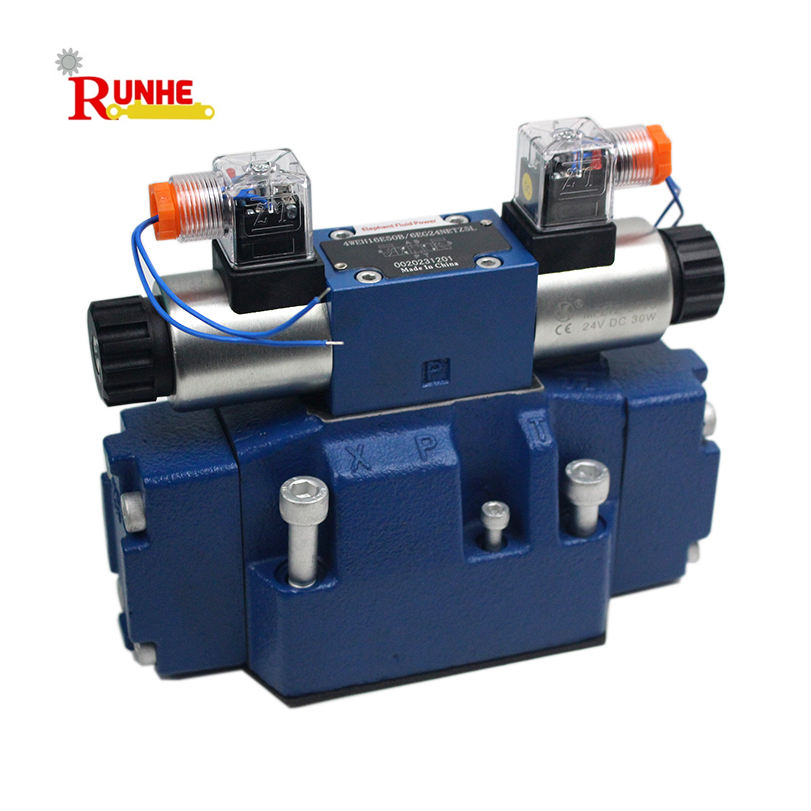

Electrically And Hydraulically Hydraulic Control Valve 4WEH16E50B 6EG24NETZ5L 3
