Tie Rod Agricultural Hydraulic Cylinders Extended Piston Rod For Rice Transplanter

Agricultural Hydraulic Cylinder

Product Information

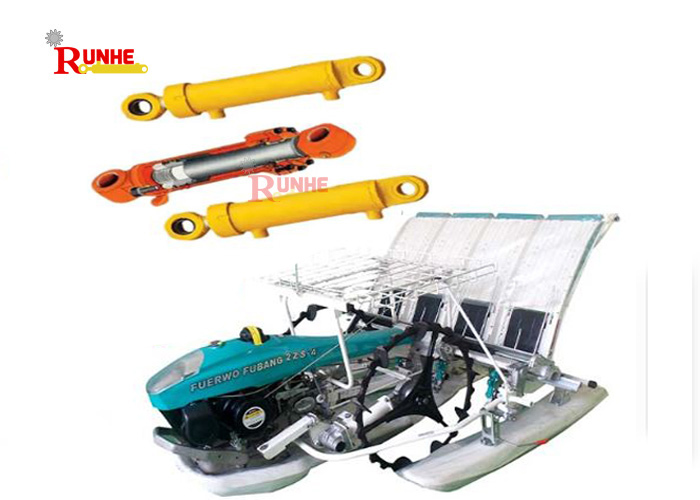

Our Tie Rod Agricultural Hydraulic Rams with an extended piston rod are specifically engineered for rice transplanters, providing reliable and precise lifting and positioning during seedling transplanting operations. The extended piston rod design ensures sufficient stroke length to meet the unique working requirements of rice paddy machinery, even in muddy and wet conditions. Built with high‑strength tie rods, the cylinder offers excellent structural stability and durability. The hard‑chromed piston rod resists corrosion and wear, while the advanced sealing system prevents leakage and extends service life. Compact, easy to install, and highly adaptable, this hydraulic ram delivers consistent performance, helping to improve transplanting efficiency and reduce maintenance time.

Product Summary

Agricultural hydraulic cylinders are core power actuators for modern farming machinery, specifically engineered to withstand harsh field conditions including high intensity, dust, moisture, and chemical corrosion. Manufactured from high-strength alloy steel with precision machining and special surface treatments, they offer exceptional pressure resistance, fatigue strength, and corrosion protection. An optimized sealing system ensures leak-free, smooth, and reliable operation over extended periods. With a compact design and high force output, they are widely used for lifting, steering, tilting, and other motion controls in tractors, harvesters, seeders, and more, significantly enhancing operational efficiency and automation, providing a solid guarantee for efficient and reliable agricultural machinery performance.

Product Parameter Table

Product Application

Agricultural hydraulic cylinders are core actuators for farm machinery. Widely used in tractors, harvesters, seeders, etc., they drive lifting, tilting, opening and closing, support plowing, sowing, harvesting, fertilizing, improve agricultural automation and efficiency, and adapt to complex farming scenarios.

Product Features

This agricultural hydraulic cylinder features a high-density steel cylinder body, offering excellent pressure and impact resistance, making it suitable for complex field operating environments. Internally equipped with wear-resistant seals, it effectively prevents hydraulic oil leakage and dust intrusion, extending the equipment's service life. The piston operates smoothly without jamming, allowing for precise control of the machinery's movement range. The standardized installation interface design greatly facilitates rapid assembly and maintenance, providing a reliable guarantee for the stable and efficient operation of modern agricultural machinery.

Product Usage Instructions

1. Fit & Install:Choose the matching mounting method (trunnion/flange) per the farm machine interface, and tighten the connectors;
2. Oil Circuit Connection:Connect the agricultural hydraulic cylinder’s oil ports to the hydraulic system hoses of the farm machine, and check the seal;
3. No-Load Debugging:Start the equipment, operate the piston rod to extend/retract 2-3 times without load to exhaust air and confirm smooth movement;
4. Loaded Operation:Operate the control valve per the machine’s function (e.g., plow lifting), avoiding overloading beyond the rated thrust;
5. Maintenance Check:Clean the cylinder after operation, regularly inspect seal wear and hydraulic oil level, and keep dust/water out.

Our Company

Hebei Runhe Hydraulics Co., Ltd. is a trustworthy hydraulics expert with 12 years of industry experience. We design and supply a full range of hydraulic cylinders, in addition to custom-made non-standard hydraulic cylinders. Our professional product range also includes high-performance hydraulic pumps, which are fully compatible with major brands such as Parker and Rexroth.

For reliable technical consultation or product solutions, our team is ready to support you. Please feel free to contact us anytime.
