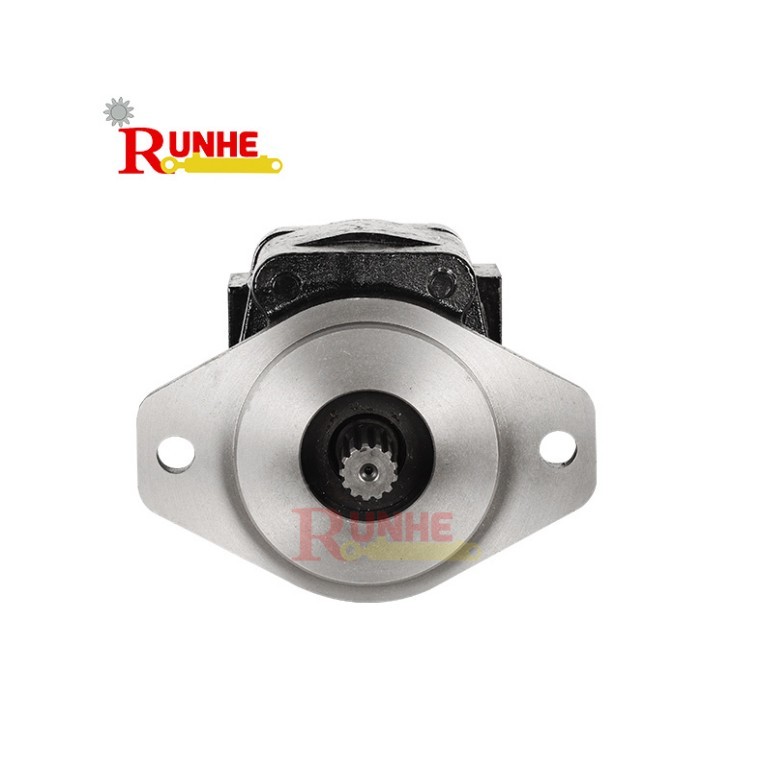

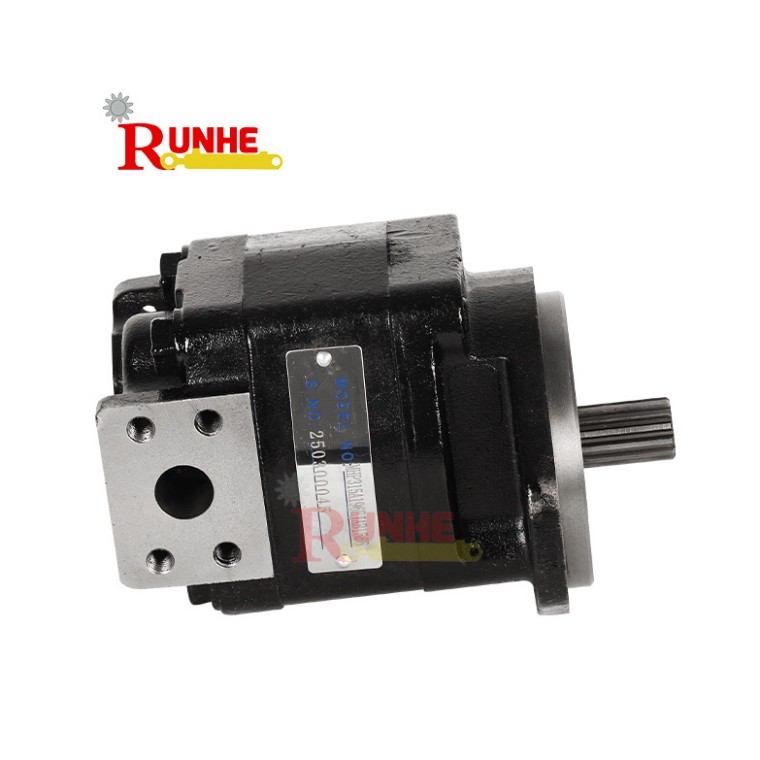

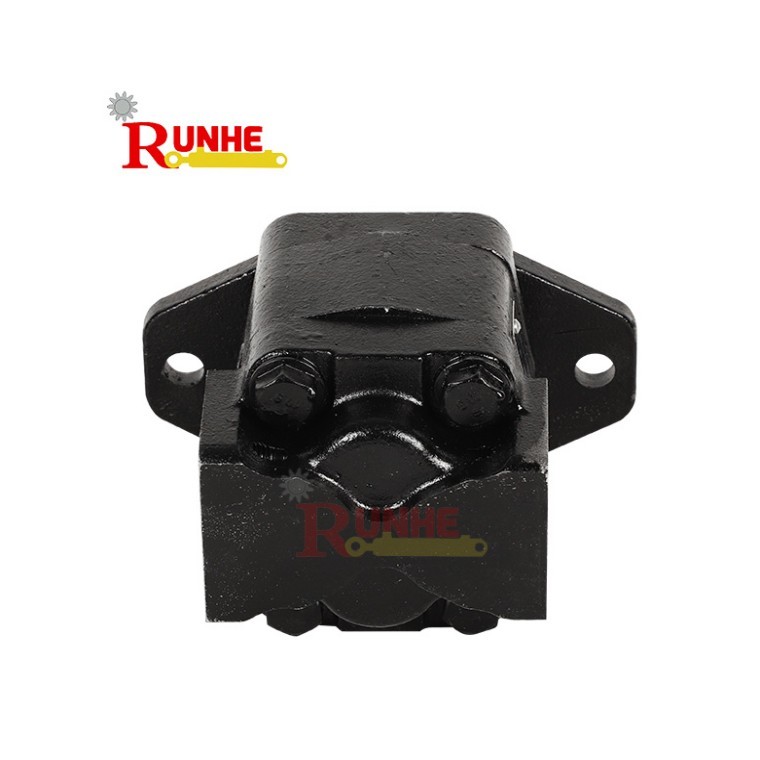

PGP315 Hydraulic Gear Pump Replacement For Log Splitter
Hydraulic Gear Pump Description
The 315 series fixed displacement gear pumps offer high-pressure durability due to their cast iron construction, making them particularly well-suited for the demanding environments of forestry machinery, including harvesters, feller bunchers, and forwarders. They are available as a standard pump, clutch pump, and tandem pump.
Our PGP gear pumps are perfectly compatible with Parker original parts, with a complete size fit. Performance and quality are no less than original parts, with faster delivery and more competitive pricing.
Runhe is China's largest hydraulic manufacturer, providing high quality, stable delivery times, competitive prices, and excellent after-sales service, committed to becoming a reliable hydraulic partner for its customers.
Distributors, wholesalers, and repair shops are welcome to inquire.
Hydraulic Gear Pump Specifications
| Body Material |
Cast Iron |
| Case Drain Option |
Yes |
| Charge Pump Option |
No |
| Circuit Type |
Open |
| Configuration |
Single, Tandem, Multiple |
| Control Method |
Relief, load sense, priority, unloader |
| Fluid Type |
Standard Hydraulic Fluid, Phosphate Ester, Water Glycol |
| Maximum Displacement |
41 cm²/rev |
| Max.Flow |
26 gpm |
| Min./Max. Fluid Temperature |
-20° C to 80° C |
| Max. Operating Pressure |
241 bar |
| Maximum Speed (RPM) |
3500 |
| Min./Max.Viscosity (SUS) |
50/7500 |
| Max. Weight |
10 kg |
| Port Connection |
SAE, ISO, DIN |
| Port Connection Type |
Flange, straight threaded |
| Porting Location |
Side ports,rear ports |
| Pump Technology |
Gear |
| Pump Type |
Fixed |
| Rotation |
Clockwise,counter clockwise,birotational |
| Shaft Type |
SAE,ISO,DIN, Industry Specfic |
Hydraulic Gear Pump Features
The PGP315 supports single-pump, multi-pump, and series configurations, and is compatible with a variety of valve options, making it widely applicable in mobile and industrial applications requiring reliable hydraulic power. For specific equipment models, please confirm compatibility further.
They excels at powering the cutting heads, grapple arms, travel systems, and auxiliary hydraulic circuits in forestry equipment, delivering efficient and stable performance even in muddy terrain, steep slopes, or extreme weather conditions—greatly enhancing harvesting productivity and extending machine lifespan.
Hydraulic Gear Pump Applications
1. Forestry Machinery: Harvesters, feller bunchers, forwarders, log grapples, etc., used to drive cutting heads, grappling arms, and walking systems.
2. Construction Equipment: Excavators, wheel loaders, skid steer loaders, compactors, and other heavy construction machinery.
3. Material Handling Equipment: Forklifts, cranes, conveyor systems, garbage trucks, roll-on/roll-off trucks, etc.
4. Agricultural Machinery: Harvesters, tractors, irrigation equipment, etc.
5. Oil & Gas and Municipal Equipment: Salt and sand spreaders, aerial work platforms, oil and gas service vehicles, rejection trucks, mobile floor trucks, etc.
6. Others: Mining equipment, lawn care equipment, professional and municipal vehicles.
Service
1.Price only 1/3 of the original manufacturer's price
2.Fast delivery
3.Customization available based on drawings
4.Supports small batch orders
5.OEM service
6.12-month warranty
7.24-hour after-sales service and technical support
8.Factory visits available online and offline
FAQ
1.How long is the delivery date?
10-15days,
2.Can it be customized?
Yes, customization based on drawings and OEM services are available.
3.What are your main products?
Hydraulic Cylinders, Hydraulic Gear Pump, Gear Motor and Parts
4. What services do you provide?
12-Month Warranty, 24/7 After-Sales Service
5. Can I visit the factory?
Yes, you can watch it online or visit the factory offline
