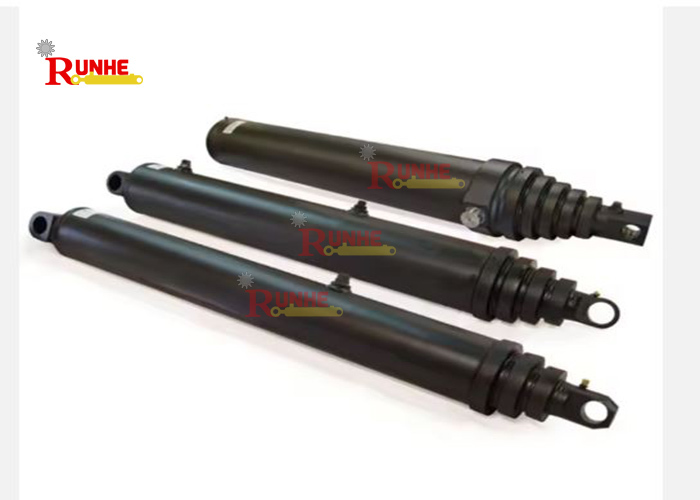

Hydraulic Telescopic Piston Cylinder Heavy Duty For Harrow Machine

1
MOQ
$200-$600
Price
Hydraulic Telescopic Piston Cylinder Heavy Duty For Harrow Machine
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Agricultural Hydraulic Cylinder
Key Words: Standard Hydraulic Cylinders, One Way Hydraulic Cylinder
Material: Stainless Steel Or Other
Application: Agricultural Machinery
Working Pressure: 16-30Mpa
Stroke: 100-1000mm Or Custom
Operating Mode: Single Acting Or Double Acting
Port Connection Type: Flange Connection, Or Other
Seal Type: Piston Seal Or Other
Operating Temperature: -35℃ ~ +80℃
Highlight:

telescopic agricultural hydraulic rams

,

telescopic agricultural hydraulic cylinders

,

heavy duty agricultural hydraulic rams
Basic Infomation
Place of Origin: Hebei, China
Brand Name: Runhe
Certification: ROHS
Model Number: agricultural hydraulic cylinder
Payment & Shipping Terms
Packaging Details: Cartoon
Delivery Time: 5-20 working days
Payment Terms: L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability: 10000 pcs per month
Product Description

Telescopic Hydraulic Piston Cylinder Heavy Duty For Harrow Machine



Product Information

Our agricultural hydraulic cylinders are high-performance, durable components tailored for farming equipment including tractors, harvesters and planters. Featuring hard-chrome plated rods for superior wear resistance and multi-layer seals for zero leakage, they deliver stable thrust (up to 50 tons) and precise motion control. Built to withstand harsh farm conditions like dust and moisture, they support custom strokes and sizes. With ROHS certification and a 12-month warranty, they are ideal for lifting, tilting and adjusting agricultural machinery.



Product Parameter Table



model
Cylinder inner diameter
(mm)
Cylinder pole diameter
(mm)
distance of run
(mm)
locating distance
(mm)
weight
HSG40/25-100-330
40
25
100
330
3.5KG
HSG40/25-200-430
40
25
200
430
4KG
HSG40/25-300-530
40
25
300
530
5KG
HSG40/25-400-630
40
25
400
630
6KG
HSG40/25-500-730
40
25
500
730
7KG
HSG40/25-600-830
40
25
600
830
8KG
model
Cylinder inner diameter
(mm)
Cylinder pole diameter
(mm)
distance of run

(mm)
locating distance
(mm)
weight
HSG50/30-100-340
50
30
100
340
4.5KG
HSG50/30-200-440
50
30
200
440
5.5KG
HSG50/30-300-540
50
30
300
540
6.5KG
HSG50/30-400-640
50
30
400
640
8KG
HSG50/30-500-740
50
30
500
740
9KG
HSG50/30-600-840
50
30
600
840
10.5KG
model
Cylinder inner diameter
(mm)
Cylinder pole diameter
(mm)
distance of run

(mm)
locating distance
(mm)
weight
HSG63/35-100-340
63
35
100
370
7KG
HSG63/35-200-440
63
35
200
470
8KG
HSG63/35-300-540
63
35
300
570
10KG
HSG63/35-400-640
63
35
400
670
11.5KG
HSG63/35-500-740
63
35
500
770
13KG
HSG63/35-600-840
63
35
600
870
15KG
model
Cylinder inner diameter
(mm)
Cylinder pole diameter
(mm)
distance of run

(mm)
locating distance
(mm)
weight
HSG80/50-100-340
80
50
100
400
13KG
HSG80/50-200-440
80
50
200
500
15.5KG
HSG80/50-300-540
80
50
300
600
18KG
HSG80/50-400-640
80
50
400
700
20KG
HSG80/50-500-740
80
50
500
800
23KG
HSG80/50-600-840
80
50
600
900
26KG
model
Cylinder inner diameter
(mm)
Cylinder pole diameter
(mm)
distance of run

(mm)
locating distance
(mm)
weight
HSG100/63-100-340
100
63
100
500
25KG
HSG100/63-200-440
100
63
200
600
28KG
HSG100/63-300-540
100
63
300
700
31KG
HSG100/63-400-640
100
63
400
800
34KG
HSG100/63-500-740
100
63
500
900
37KG
HSG100/63-600-840
100
63
600
1000
40KG



Product Application



Agricultural hydraulic cylinders are core actuators of modern farming machinery, widely applicable to tractors, harvesters, seeders, crop protection machines and other equipment. They provide precise power for key actions of agricultural machinery such as lifting, tilting, opening/closing and positioning, supporting the whole process of plowing, sowing, fertilizing and harvesting. Resistant to dust, moisture and drastic temperature changes in the field, these components ensure stable operation of equipment under heavy loads, greatly improving the automation and operational efficiency of agricultural production, and serving as key elements to promote the development of modern agricultural mechanization.



Product Features



This agricultural hydraulic cylinder features a high-density steel cylinder body, offering excellent pressure and impact resistance, making it suitable for complex field operating environments. Internally equipped with wear-resistant seals, it effectively prevents hydraulic oil leakage and dust intrusion, extending the equipment's service life. The piston operates smoothly without jamming, allowing for precise control of the machinery's movement range. The standardized installation interface design greatly facilitates rapid assembly and maintenance, providing a reliable guarantee for the stable and efficient operation of modern agricultural machinery.



FAQ



1,Q: Which agricultural machinery is the agricultural hydraulic cylinder suitable for?

A: It is widely suitable for various agricultural machinery such as tractors, combine harvesters, seeders, crop protection machines, silage machines, and compost turners.

2,Q: Does the product meet the relevant national agricultural machinery standards?

A: All agricultural hydraulic cylinders comply with GB/T 15622 "Test Methods for Hydraulic Cylinders" and have passed factory pressure tests and sealing performance tests, so they can be used with confidence.
3,Q: How to protect the hydraulic cylinder in dusty field environments?
A: Prioritize models with dust covers or dust rings, clean the dust on the cylinder rod surface in time after operation, avoid scratches by hard objects, and regularly apply special grease to enhance protection.
4,Q: Can the stroke of the hydraulic cylinder be customized?
A: Yes. According to the specific operation needs of agricultural machinery, strokes ranging from 100mm to 2000mm can be customized, and some manufacturers also support special length customization.

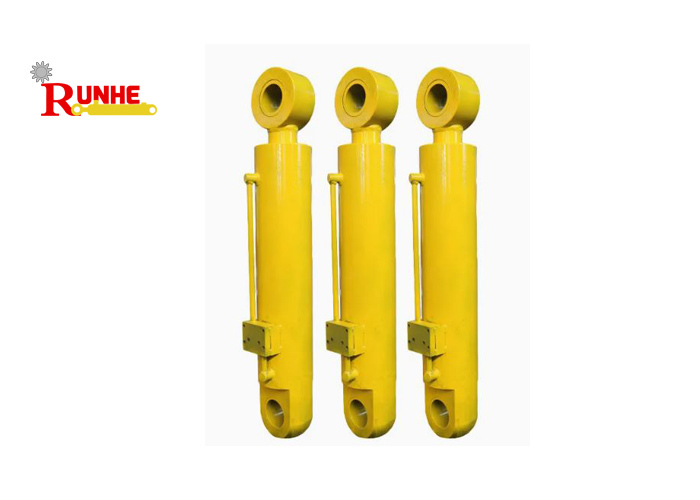

Hydraulic Telescopic Piston Cylinder Heavy Duty For Harrow Machine 0

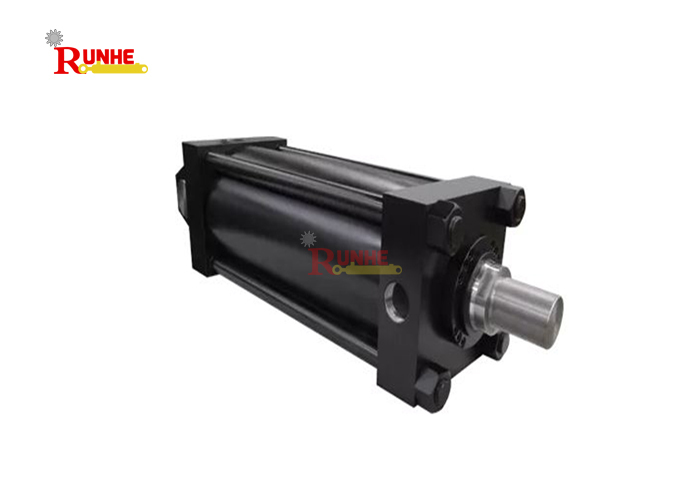

Hydraulic Telescopic Piston Cylinder Heavy Duty For Harrow Machine 1

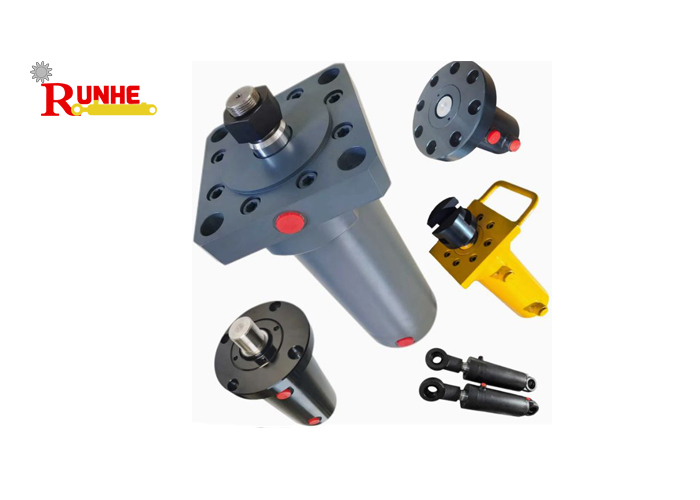

Hydraulic Telescopic Piston Cylinder Heavy Duty For Harrow Machine 2
