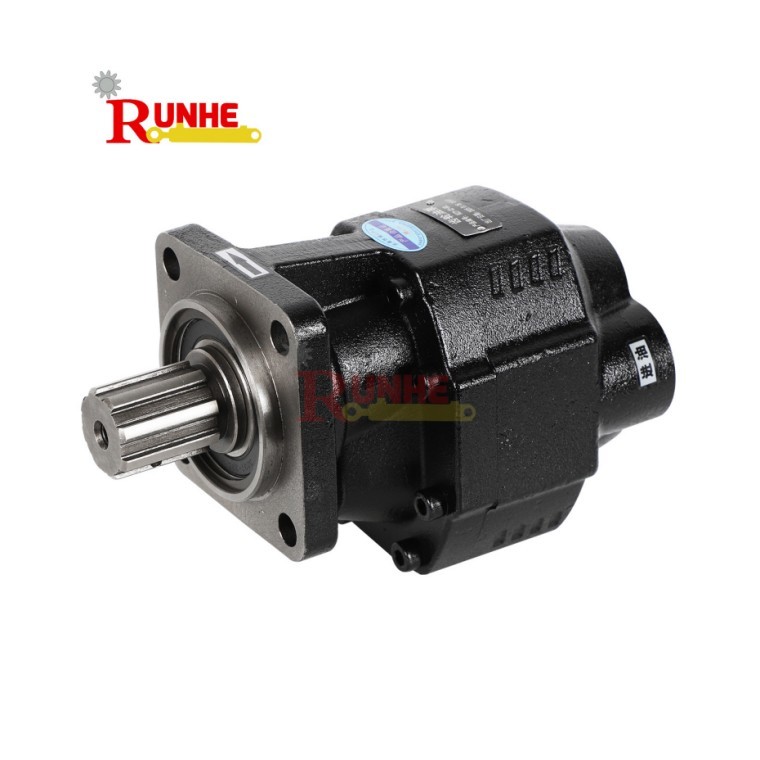

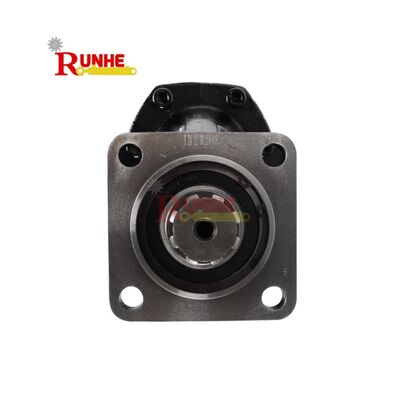

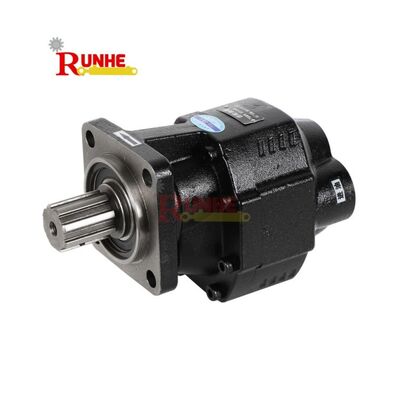

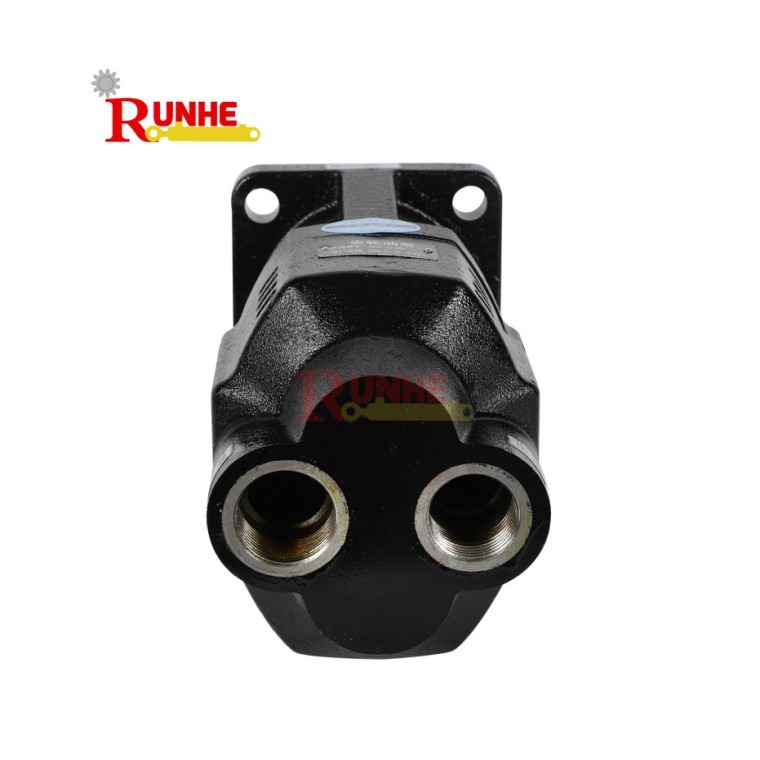

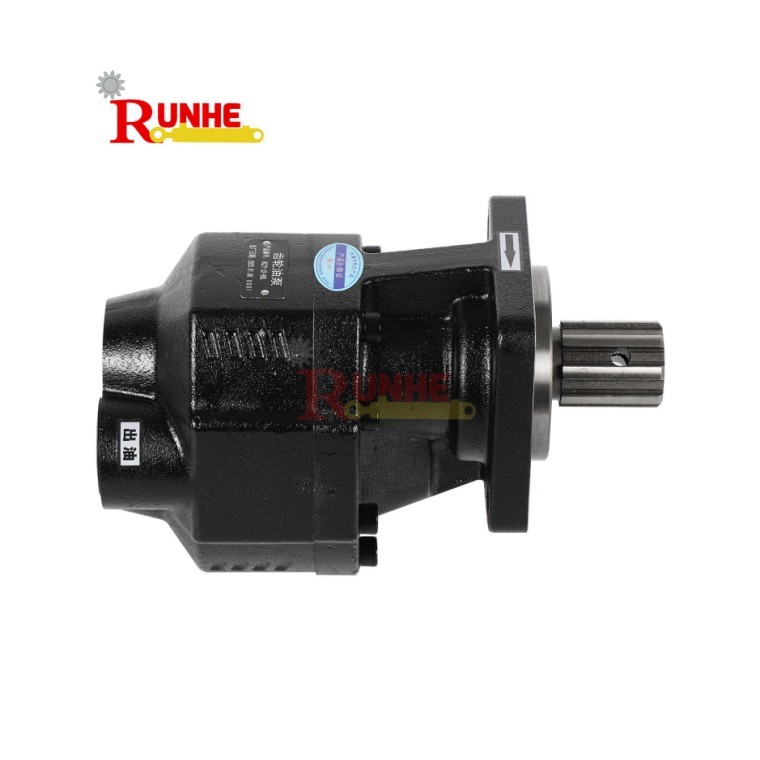

High Power Hydraulic Gear Pump 200Bar RCZY-32-80L For Marine Machinery
Commercial Hydraulic Gear Pump Description
The RCZY-32-80L gear pump is a high-performance aluminum alloy external meshing hydraulic gear pump designed for medium and high pressure conditions. It has a rated pressure of 20MPa, a maximum pressure of 25MPa, a wide speed range (600-3000rpm), a volumetric efficiency of over 93%, and a counterclockwise rotation (CCW) shaft type compatible with multiple international standards such as SAE, ISO, and DIN.
Our gear pumps are 100% compatible with Parker, Danfoss, etc, and feature a simple and compact design that significantly reduces noise, providing quiet and smooth operation. It is particularly suitable for marine machinery, forklifts, tractors, aerial work platforms, construction equipment, material handling equipment, agricultural machinery, and lifting equipment. It maintains high efficiency, durability, and stable flow rate.
Runhe is a leading hydraulic component manufacturer in China, producing a complete range of hydraulic cylinders, hydraulic gear pumps, hydraulic gear motors, spare parts, and more. High quality, consistent delivery times, competitive pricing, and excellent after-sales service are key factors in our rapid growth. We will continue our production and product development initiatives to provide high-quality products at reasonable prices.
For our valued customers, our quality standards apply from the inquiry stage to the delivery stage; you can be assured they are applicable.
Hydraulic Gear Pump Specifications
| Model |
RCZY-32-80L |
| Nominal Displacement(ml/r) |
32 |
| Rated Pressure(Mpa) |
20 |
| Max Pressure(Mpa) |
25 |
| Speed(r/min) |
600-3000 |
| Efficiency Volumetric(≥%) |
93 |
| Rotation Direction |
CCW |
| Pump Type |
Gear, Fixed |
| Direction of Rotation |
Clockwise,Counterclockwise,Bi-Rotational |
| Shaft Type |
SAE,ISO,DIN, Industry Specific |
| Length |
Varies By Configuration |
Commercial Hydraulic Gear Pump Features
1. Extremely Low Noise
Utilizing a specially optimized gear design, the pump noise is virtually inaudible during operation.
2. Minimal Pressure Pulsation
Smoother flow output reduces hydraulic system vibration, improving the accuracy and lifespan of actuators (such as cylinders and motors).
3. Smooth Operation
Low vibration makes it suitable for precision equipment or long-term continuous operation, extending the lifespan of seals and piping.
4. High Efficiency and Durability
Maintaining the high volumetric efficiency (over 93%) and durability of ordinary gear pumps while providing a more comfortable operating environment.
5. Suitable for Sensitive Applications
Especially suitable for applications with strict noise requirements, such as marine machinery, indoor forklifts, and urban sanitation vehicles.
Commercial Hydraulic Gear Pump Applications
1. Construction Machinery: Excavators, loaders, bulldozers, road rollers, etc., used for main hydraulic, steering, and attachment drive systems.
2. Agricultural Machinery: Tractors, combine harvesters, sprayers, seeders, etc., used for lifting, steering, and implement drive systems.
3. Material Handling Equipment: Forklifts, stackers, logistics equipment, used for hydraulic lifting and steering systems.
4. Industrial Equipment: Injection molding machines, hydraulic presses, stamping presses, machine tools, used for mold closing, pressure supply, etc.
5. Marine Machinery: Steering gears, winches, anchor winches, hatch cover systems, providing reliable hydraulic power.
