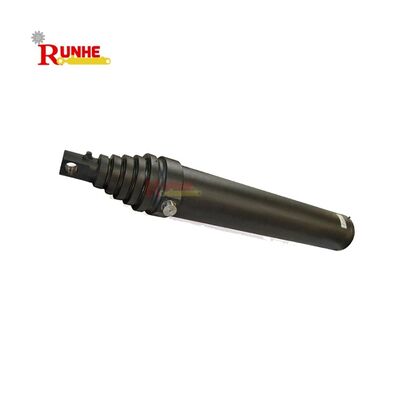

Custom Heavy Duty Multi Stage Hydraulic Cylinder High Lifting Force For Lifting Machinery

Heavy Duty Multi Stage Hydraulic Cylinder Product Description

Our Custom Heavy Duty Multi Stage Hydraulic Cylinder is designed specifically for lifting machinery. It features a heavy-duty multi-stage telescopic structure that provides ultra-high lifting force (high thrust) and long stroke output. The robust and durable structure is highly customizable and perfectly suited for various cranes, hoists, lifting platforms, engineering lifting equipment, and other scenarios that require powerful lifting capacity and reliable heavy-duty performance.

Our premium Heavy Duty Multi Stage Hydraulic Cylinder delivers exceptional high lifting force in a compact design. Featuring multi-stage extension, it generates substantial pushing power—capable of handling heavy loads with ease—while maintaining a short retracted length for space-constrained applications like dump trucks and cranes. Built from high-strength steel with precision seals, it ensures reliable, powerful performance under demanding conditions, providing superior stroke-to-force ratio for heavy-duty tasks.

Runhe Hydraulic Machinery Co., Ltd. is committed to producing hydraulic cylinders, gear pumps, gear motors and accessories, offering high quality and cost-effectiveness.

Heavy Duty Multi Stage Hydraulic Cylinder Specification

Heavy Duty Multi Stage Hydraulic Cylinder Application

1. Dump Trucks/Tipping Trucks: Used for unloading ores, coal, etc. Multi-stage cylinders are vertically mounted and extend from the limited space under the truck bed to lift the large cargo box
2. Garbage Compactor Trucks: The compaction unit requires strong thrust and a long stroke to compact the garbage, while maintaining a compact overall layout
3. Cranes (Truck Cranes, Truck-Mounted Cranes): Used for the pitching (luffing cylinder) and extension (telescopic cylinder) of the boom, especially on aerial work platforms
4. Concrete Pump Trucks: The main actuator on the boom, driving the multi-section boom to extend and position, requiring smooth operation and precise control
5. Excavators: Used on the booms of some long-boom, deep-pit excavators, or demolition machines

Heavy Duty Multi Stage Hydraulic Cylinder Advantages

1. Space-saving: It folds down to a short length, taking up very little space and fitting into compact equipment.
2. Powerful: The first stage is the strongest, capable of supporting hundreds of tons of weight.
3. Long reach: When fully extended, its travel distance is several times greater than its retracted length.
