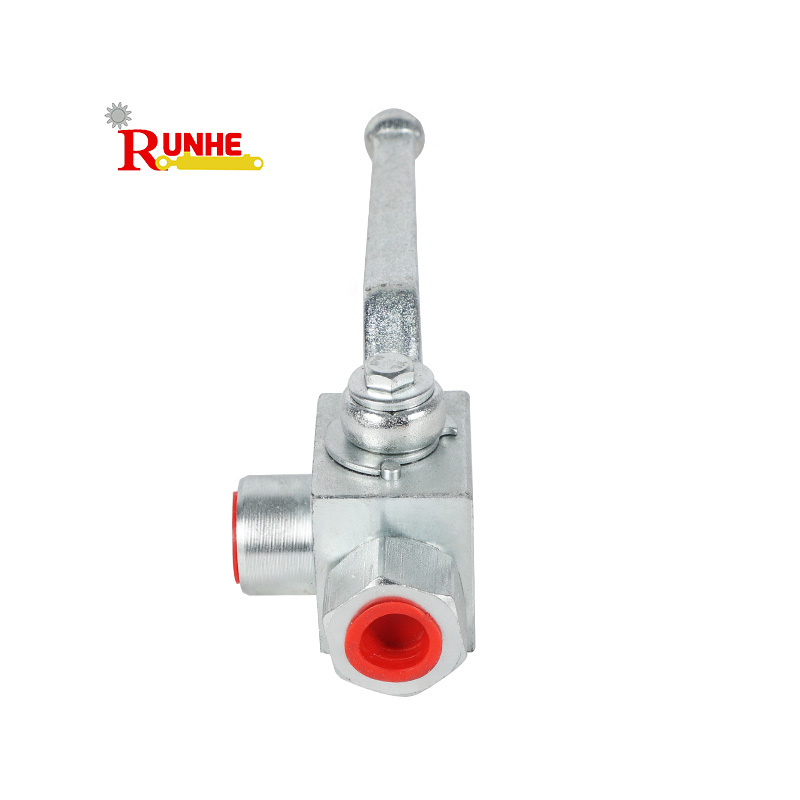

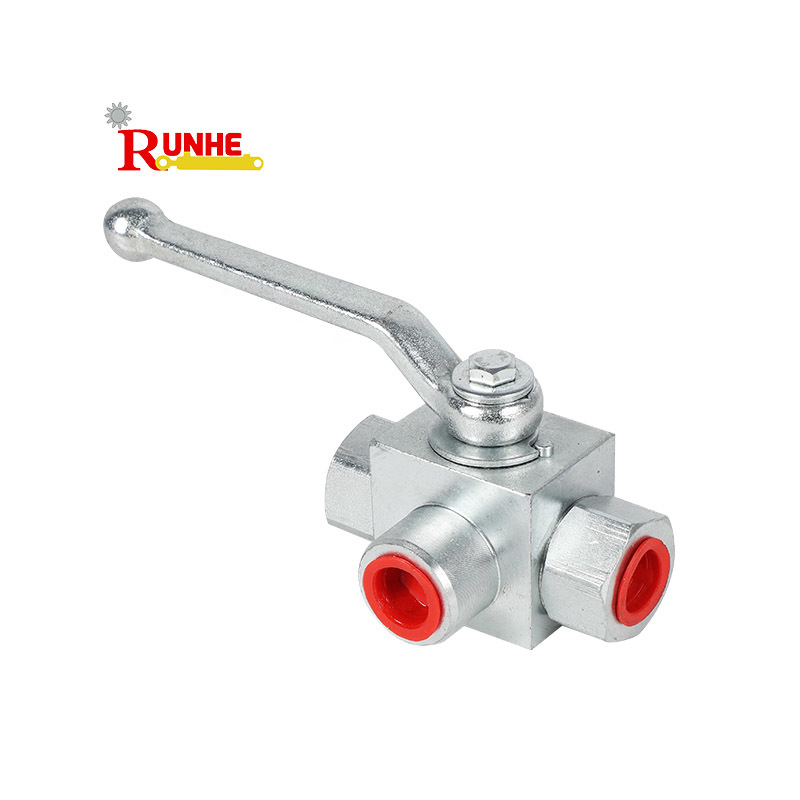

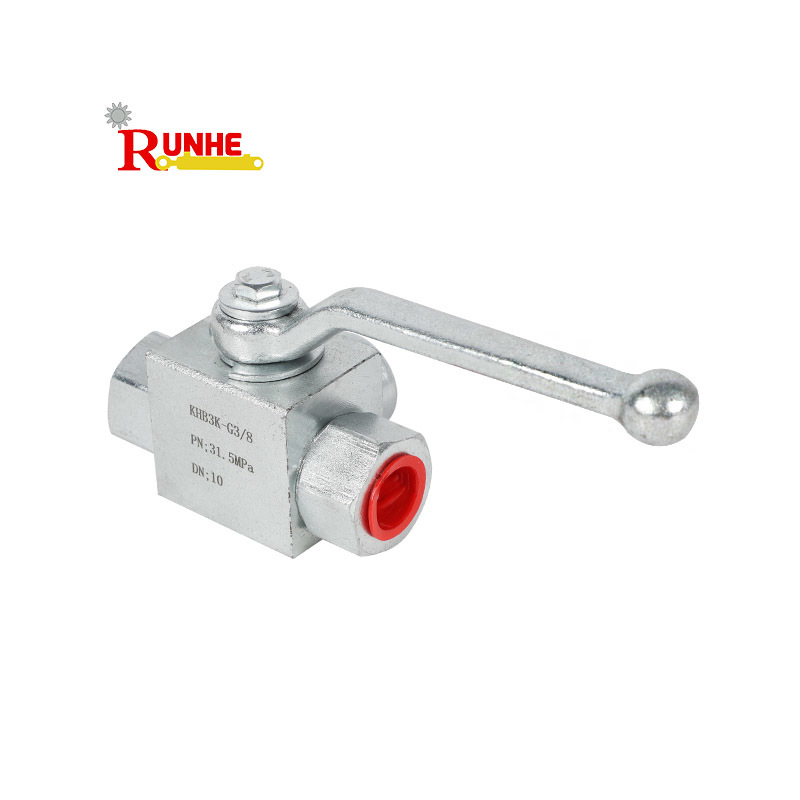

KHB3K-G3/8 Hydraulic Control Valve High Pressure 3/2 Way Ball Valves

Hydraulic Control Valve Description

Our KHB3K series features a classic high-pressure 3-way (3/2-way) ball valve, designed specifically for high-pressure hydraulic systems, providing reliable fluid direction switching, distribution, and shut-off functions. This valve employs a full-bore ball valve design, is manually operated, and is suitable for industrial hydraulics, construction machinery, testing equipment, machine tools, and high-pressure fluid control applications.

Our high-pressure ball valves are compact, reliably sealed, and withstand pressures up to 500 bar. They are suitable for hydraulic systems, petrochemicals, and other fields, enabling rapid opening, closing, or reversing control. They offer high cost-effectiveness and are readily available.

Runhe specializes in supplying hydraulic system components, including hydraulic cylinders, hydraulic pumps and accessories, hydraulic motors and accessories, and high-pressure ball valves.

With over 10 years of export experience, all our products are market-certified and widely praised.

Hydraulic Control Valve Specifications

Hydraulic Control Valve Features

1. High-pressure 2-position 3-way ball valve
2. Nominal pressure: 315 bar - 500 bar (ultra-high pressure)
3. Interface: G3/8 internal thread
4. Nominal diameter: DN10
5. Compact structure, small size, and light weight
6. Reliable sealing and easy operation (90° quick-opening/closing)
7. Exquisite appearance, valve body made of forged steel (usually galvanized/chrome-plated)
8. Suitable for hydraulic system reversing, shut-off, and flow direction switching

Hydraulic Control Valve Applications:

1. Used to control the flow direction switching, merging, or splitting of hydraulic oil.
2. Commonly found in pipelines of industrial hydraulic equipment, construction machinery, ships, and mining equipment.
3. Also suitable for high-pressure applications requiring reliable shut-off or medium direction control (such as agricultural machinery and petroleum equipment).

Hydraulic Control Valve Advantages

1. Withstands ultra-high pressure (up to 500 bar), reliable sealing, long service life, suitable for harsh hydraulic environments.
2. Minimal flow resistance (full bore design), operation requires only a quick 90° switch, convenient and labor-saving.
3. Compact structure, exquisite appearance (steel forgings + surface treatment), flexible installation, and high cost-effectiveness.

Service

1.Fast delivery
2.Supports small batch orders
3.10-month warranty
4.24-hour after-sales service and technical support
5.Factory visits available online and offline
