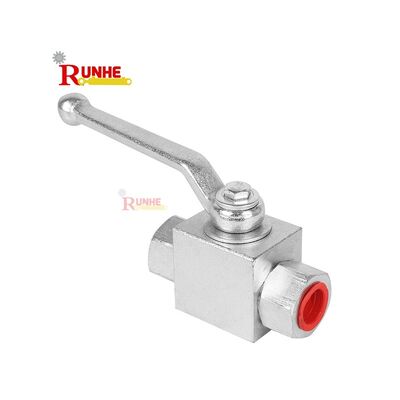

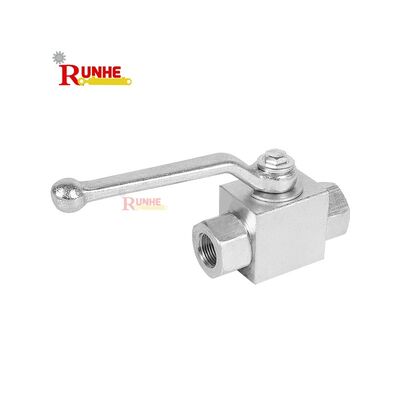

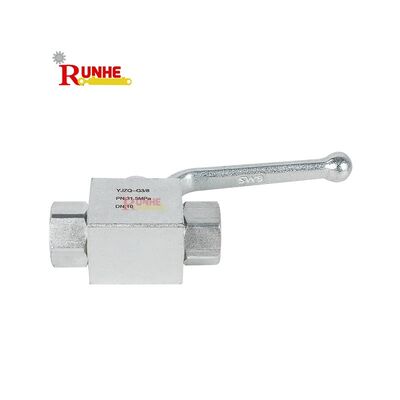

YJZQ－G3/8 Two-position Two-way Hydraulic Ball Valve Shut-off Compact Structure

Two-position Two-way Hydraulic Ball Valve Description

The YJZQ-G3/8 is a classic high-pressure 2-way 2-position hydraulic ball valve. It adopts a G3/8 internal thread interface (BSPP standard), with a nominal pressure of 31.5 MPa (approximately 315 bar). The full-bore design ensures minimal flow resistance and smooth flow.

Our high-pressure ball valves require only a 90° rapid rotation to achieve reliable flow and shut-off. They offer excellent sealing performance, impact resistance, and a long service life. Suitable for the opening and closing control of oil in hydraulic system pipelines, they are widely used in industrial equipment, construction machinery, ships, mines, agricultural machinery, petrochemicals, and other applications. They are an economical, practical, safe, and reliable shut-off element in hydraulic systems.

Runhe supply hydraulic cylinders, gear pumps and accessories, gear motors and parts, and KHB3K Series, etc high-pressure ball valves, etc.

We provide the best service and support to every partner and are committed to helping our customers expand their markets.

Hydraulic Control Valve Specifications

Hydraulic Control Valve Features

1. High-pressure 2-way 2-position hydraulic ball valve, G3/8 internal thread interface (BSPP), nominal pressure 31.5 MPa (approximately 315 bar), full-bore design with minimal flow resistance and smooth flow.

2. Compact structure, easy operation (90° quick-opening and closing), reliable sealing (POM/NBR seal), valve body forged carbon steel (zinc-plated/chrome-plated surface treatment, beautiful appearance and corrosion resistance), suitable for oil opening and closing control in hydraulic systems.

Service

1.Fast delivery
2.Supports small batch orders
3.10-month warranty
4.24-hour after-sales service and technical support
5.Factory visits available online and offline
