PGP75 Hydraulic Gear Pump Efficient For Agricultural Machinery

Hydraulic Gear Pump Description

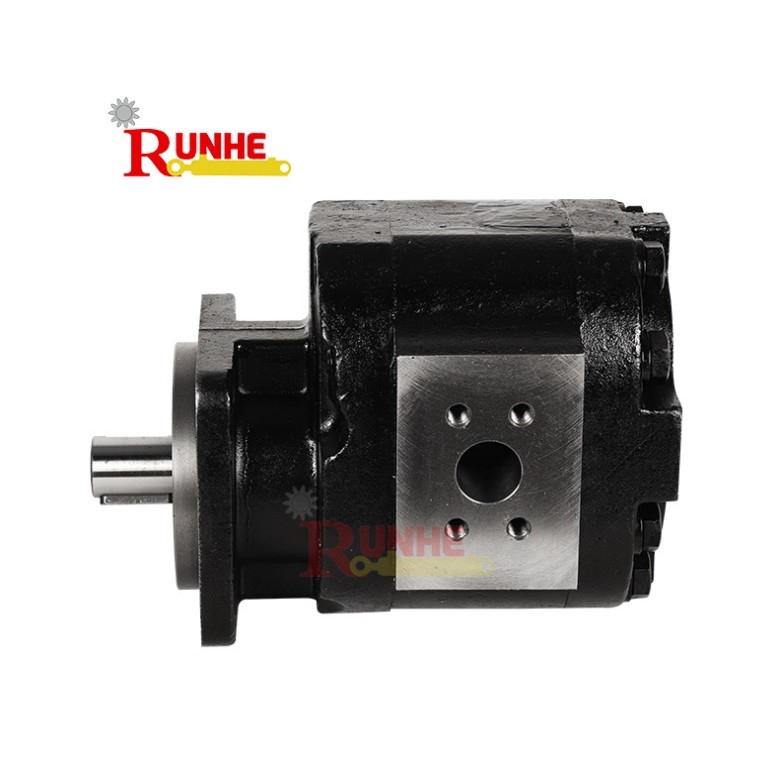

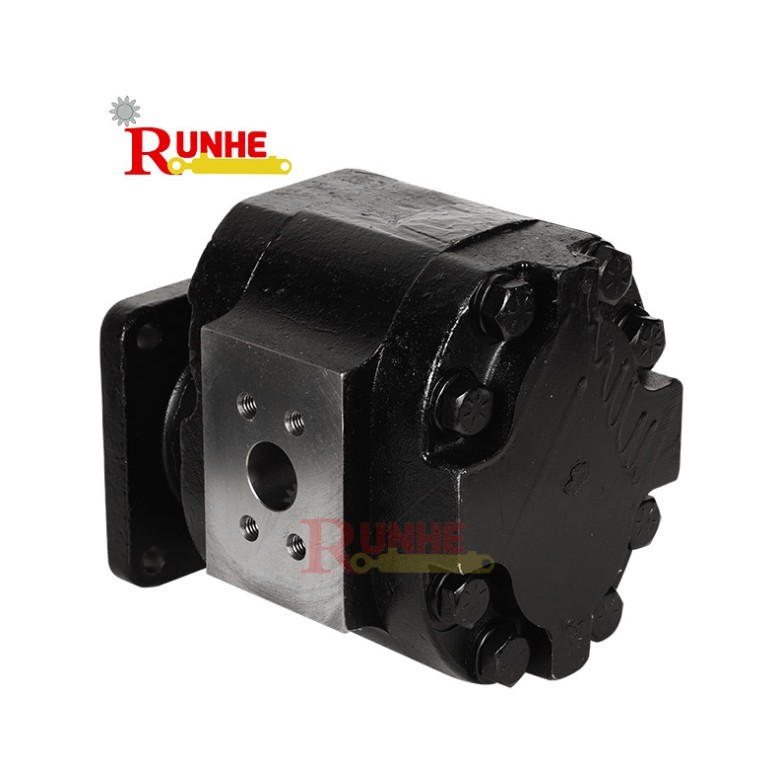

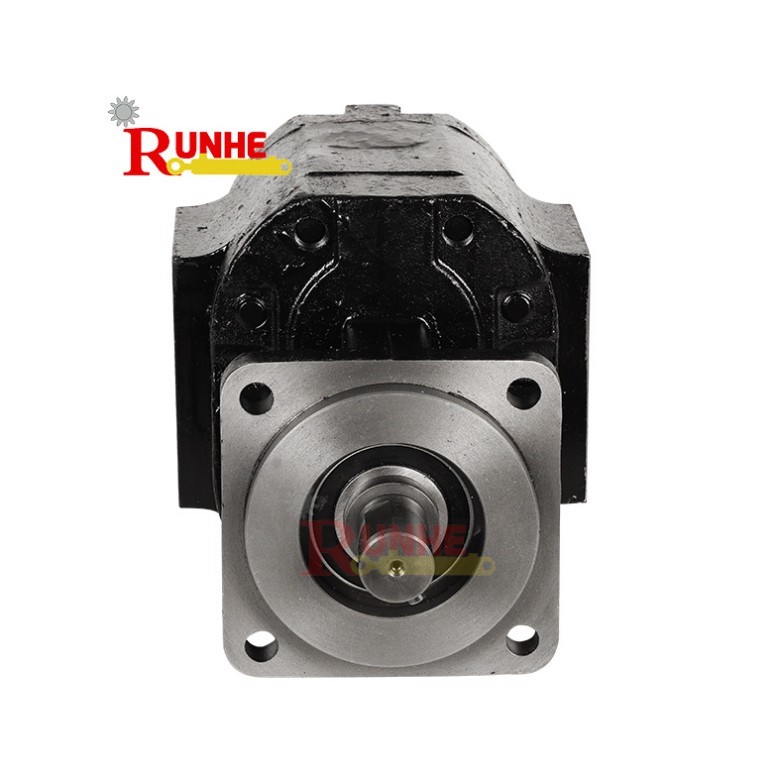

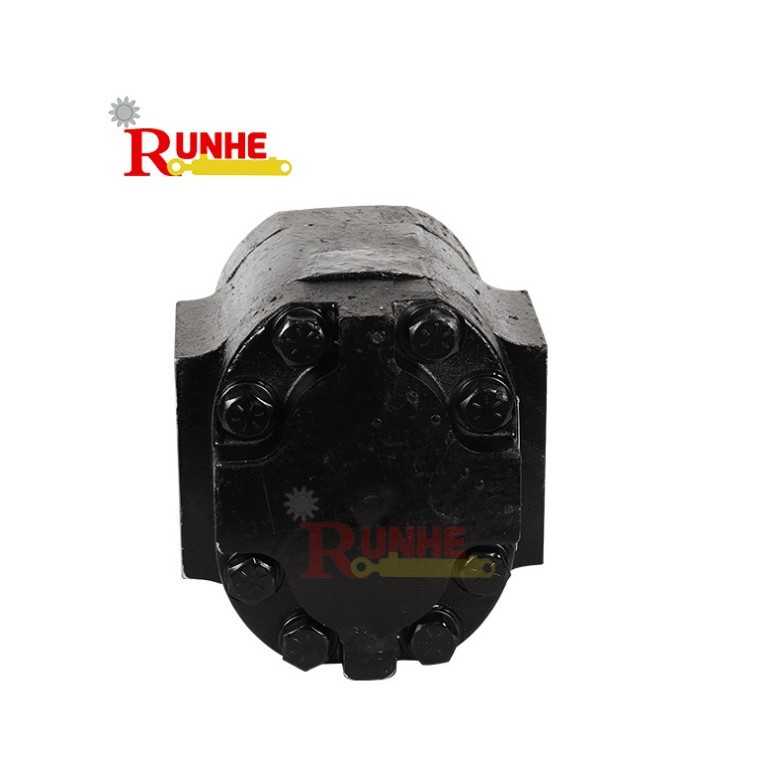

Our PGP075 Gear Pump features a robust cast iron construction, suitable for medium- and high-pressure heavy-duty applications, providing stable and reliable hydraulic output. It is particularly suitable for hydraulic systems in construction machinery, industrial equipment, and heavy vehicles. Faster delivery, more competitive pricing, and a longer warranty make it the best economical alternative to original equipment manufacturer (OEM) parts.

Our PGP hydraulic gear pumps are complete replacements for Parker pumps, offering simplicity, efficiency, and cost-effectiveness. Their performance and weight are comparable to original equipment manufacturer products, making them suitable for distributors, wholesalers, OEMs, and the aftermarket. It is widely used as an original hydraulic power source in engineering machinery, garbage trucks, dump trucks, forestry equipment, agricultural machinery, and industrial applications.

Runhe has over 10 years of experience in the hydraulics industry, and is a professional team specializing in hydraulic services, R&D, and manufacturing.
We professionally manufacture hydraulic cylinders, gear pumps, gear motors, and accessories, exporting to numerous countries and regions worldwide. Our products have gained widespread market recognition.

Hydraulic Gear Pump Specifications

Hydraulic Gear Pump Features

1.High-durability cast iron construction: Utilizes a high-strength gray cast iron pump body and roller bearings, offering strong resistance to contamination and heavy loads, suitable for long-term continuous operation under harsh conditions
2.High flow and high-pressure performance: Displacement 50–105 cc/rev (some extended to higher), maximum flow rate approximately 121 GPM (459 LPM), maximum pressure 200 bar (3000 psi), maximum speed 2400 rpm
3.OEM customization flexibility: Supports single pump/multi-unit/backpack configurations, facilitating customization to meet system requirements
4.High-torque drive compatibility: Multiple high-torque shaft types (SAE, etc.) and pressure-balanced thrust plates ensure efficient transmission and optimized performance
5.International standard interfaces: SAE/ISO/DIN flanges, ports, and shafts facilitate integration into OEM equipment designs
6.Reliability and efficiency: Volumetric efficiency up to 95%, bidirectional rotation optional, optimized for OEM mass production, providing stable and reliable quality

Hydraulic Gear Pump Applications

1.Commercial Vehicles/Municipal Equipment: Garbage trucks, dump trucks, roll-on/roll-off trucks, mobile floor trucks, salt and sand spreaders, etc., commonly used for hydraulic tipping, lifting, or auxiliary systems.
2.Construction Machinery: Excavators, loaders, skid steer loaders, trench excavators, aerial work platforms.
3.Forestry and Agricultural Machinery: Logging machines, grab buckets, harvesters, brush cutters, agricultural trailers.
4.Material Handling and Oil & Gas: Material handling forklifts, oilfield service vehicles, winch systems
5.Others: Oil and gas equipment, industrial compressors, fan drives, and other high-torque applications.
