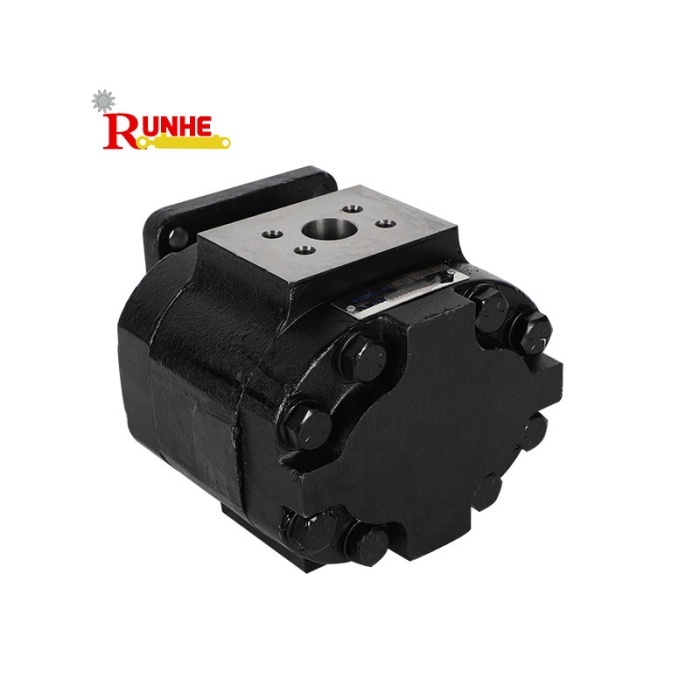

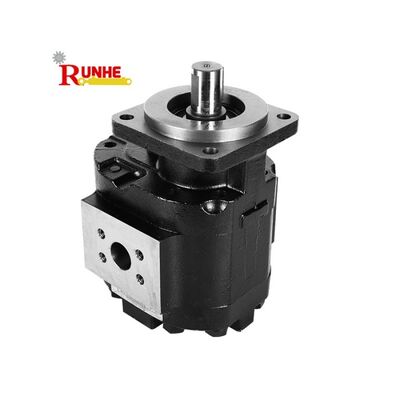

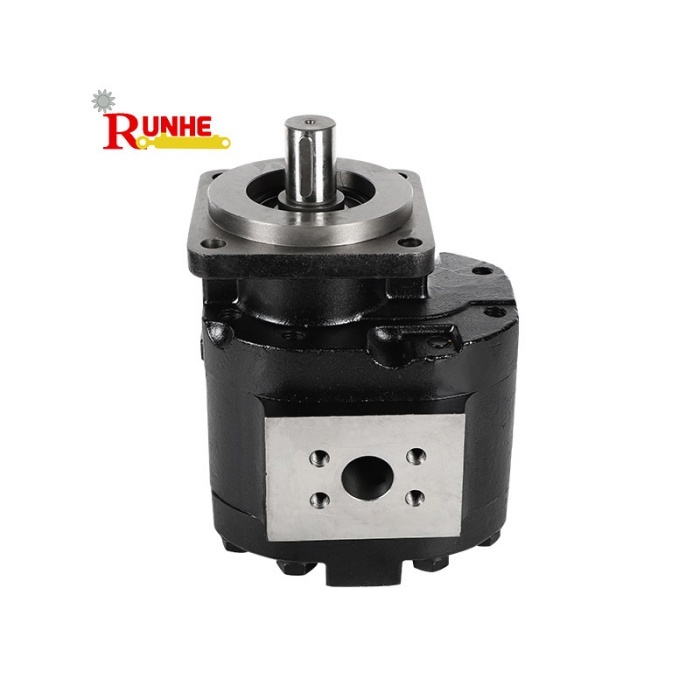

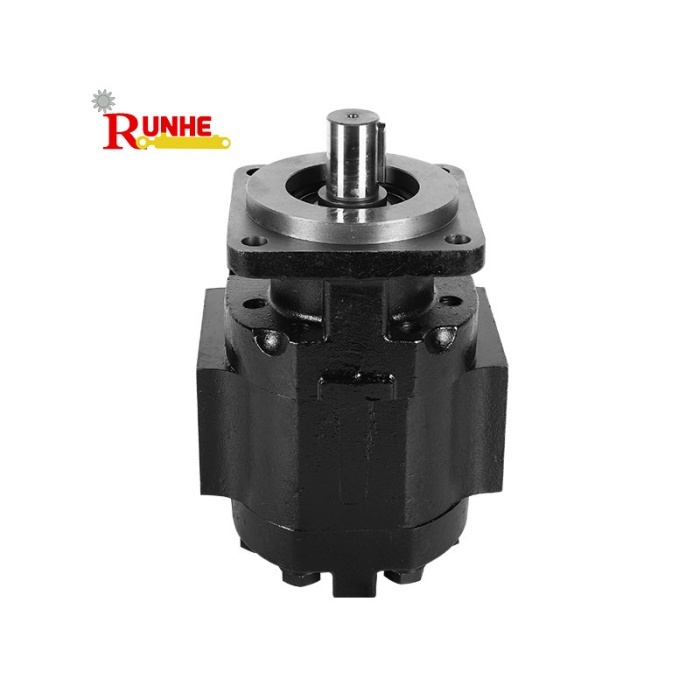

Fixed And Positive Displacement Hydraulic Gear Pump PGP075 For Skid Steer Loader

Hydraulic Gear Pump Introduction

The P75 is an external meshing fixed displacement positive displacement gear pump. Its working principle is based on the counter-rotating of two gears: disengagement on the suction side creates low-pressure oil suction, while re-engagement on the discharge side forces oil discharge through the compression chamber, achieving continuous positive displacement delivery. The pump body adopts a three-section cast iron structure, with the gear shaft supported by needle roller bearings, enhancing its resistance to contamination and radial load-bearing capacity. The core technology is a pressure-balanced thrust side plate, which automatically compensates for end face clearance through hydraulic back pressure, reducing axial leakage while minimizing friction and pulsation. With its combination of heavy-duty cast iron structure, needle roller bearings, and pressure-balanced design, it has become a classic gear pump known for its contamination resistance, impact resistance, and high reliability.

Hebei Runhe Hydraulic Machinery Co., Ltd.— 12+ years hydraulic expert. Our excavator cylinders fit all mainstream brands, custom manufacturing available. Products: hydraulic cylinders, gear pumps, gear motors — used in engineering, agriculture, automation, ports, lifting & smart storage.

Hydraulic Gear Pump Parameters

                                                                                                                        Flow :GPM/LPM Pressure:PSI/bar

Package

Normally, it is packaged in cardboard boxes and then shipped on pallets or wooden crates.

Service

• Quality Assurance: Utilizing high-precision manufacturing processes and premium materials, undergoing rigorous testing, and providing original factory warranties and inspection reports.
• Fast Delivery: Rapid response to inquiries, on-time shipment after order confirmation, and full logistics tracking.
• Technical Support: Free installation manuals, selection guidance, and remote engineer support.
• Worry-Free After-Sales Service: 12-month warranty, with technical consultation and spare parts supply after the warranty period.
• Customization Service: Supporting OEM/ODM, providing personalized solutions for your application
