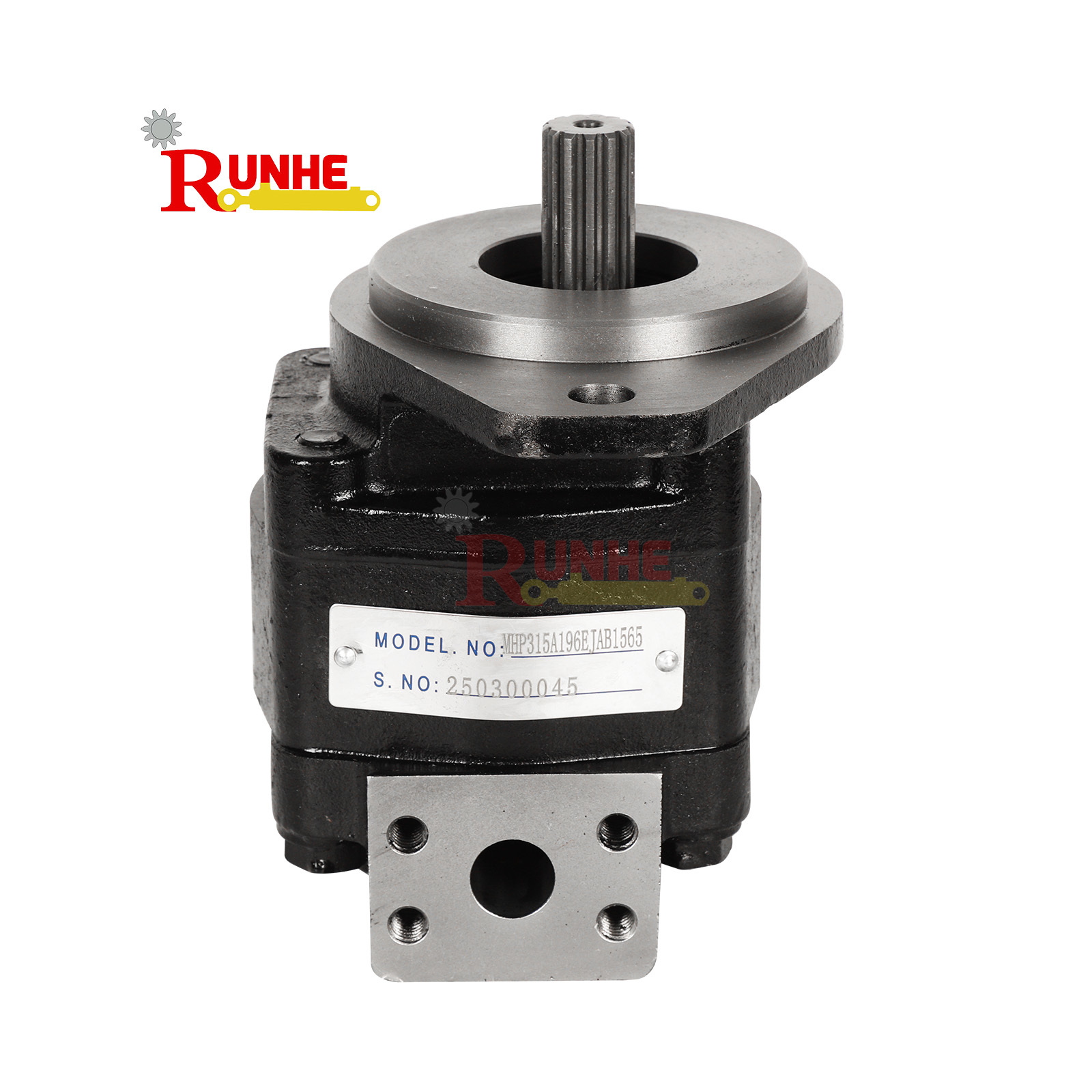

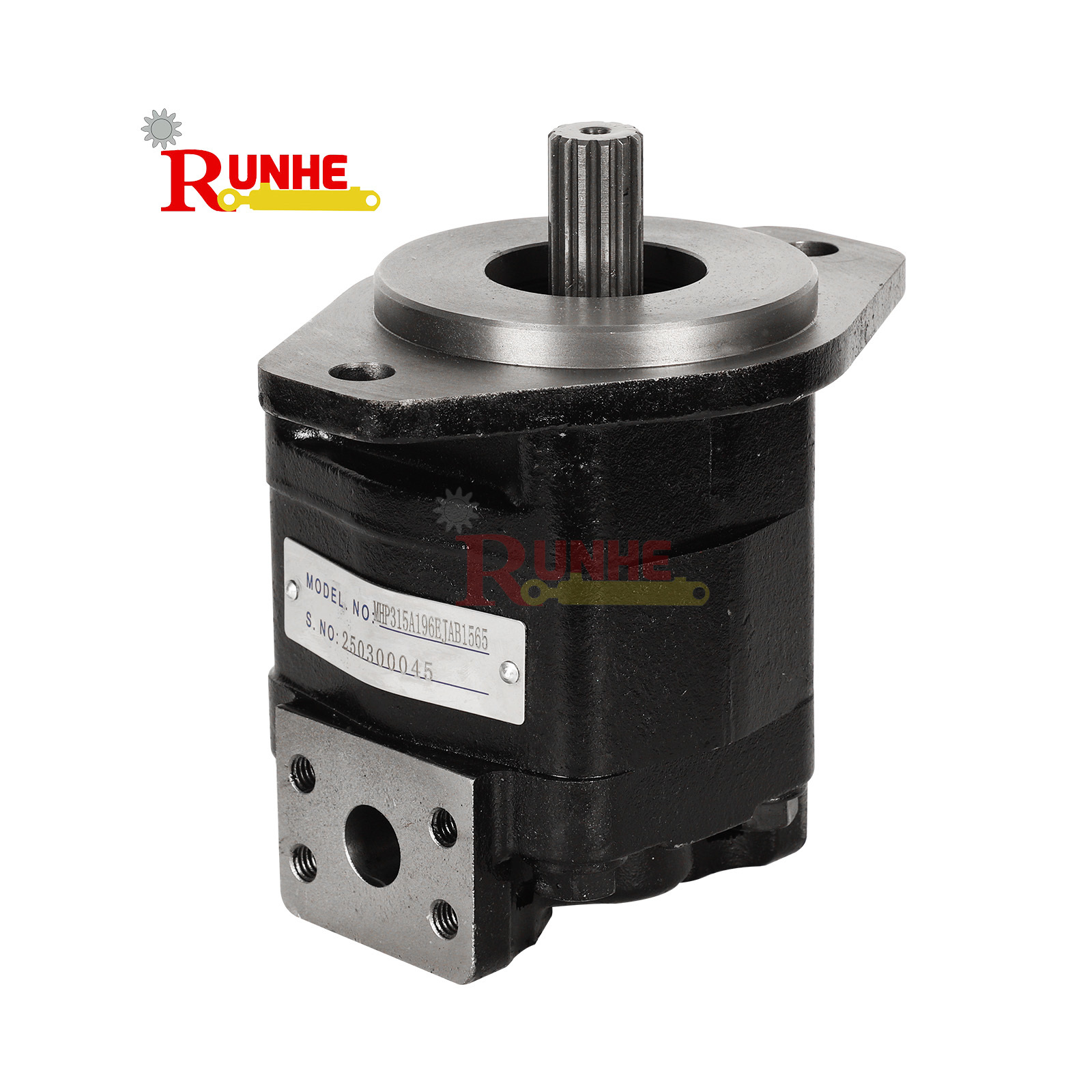

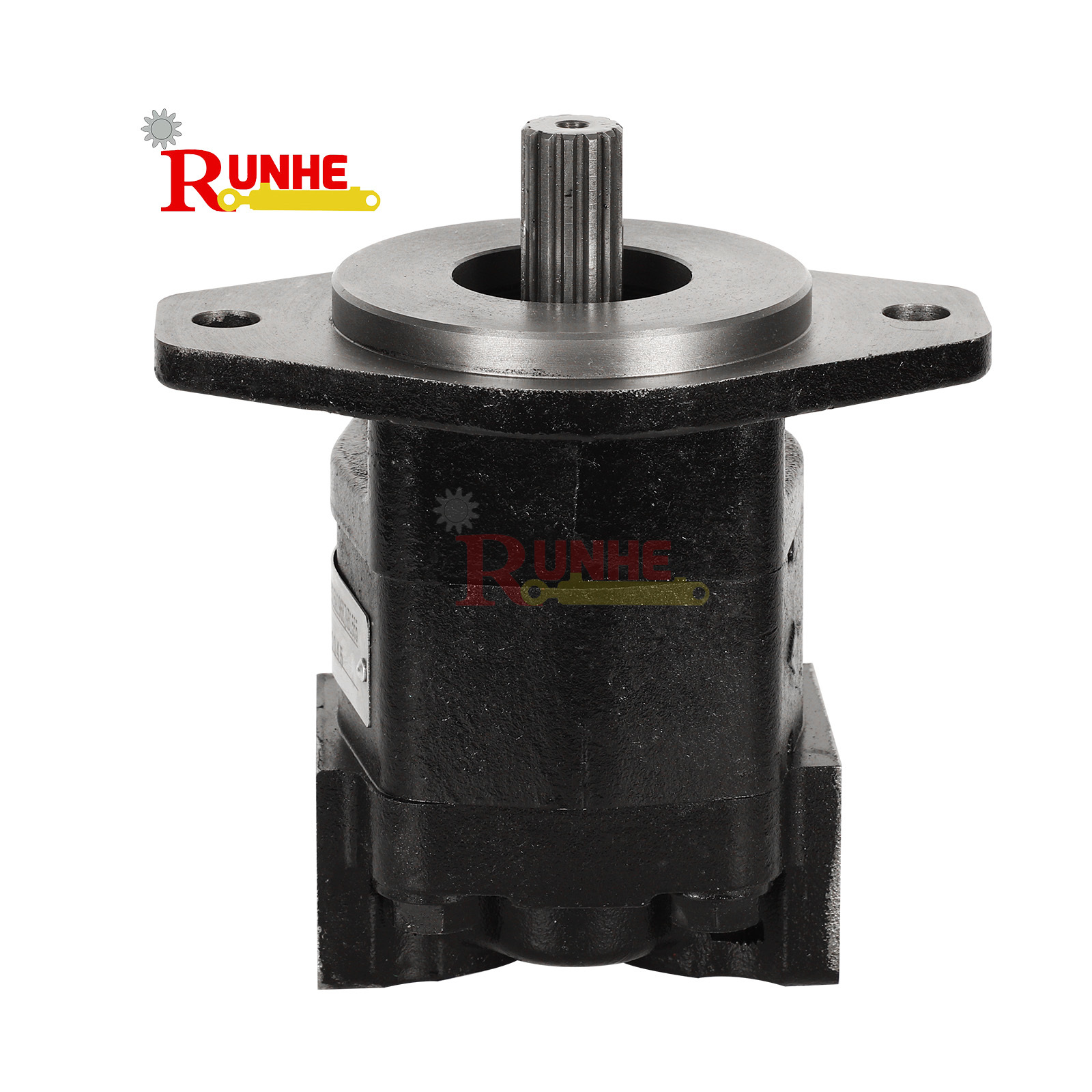

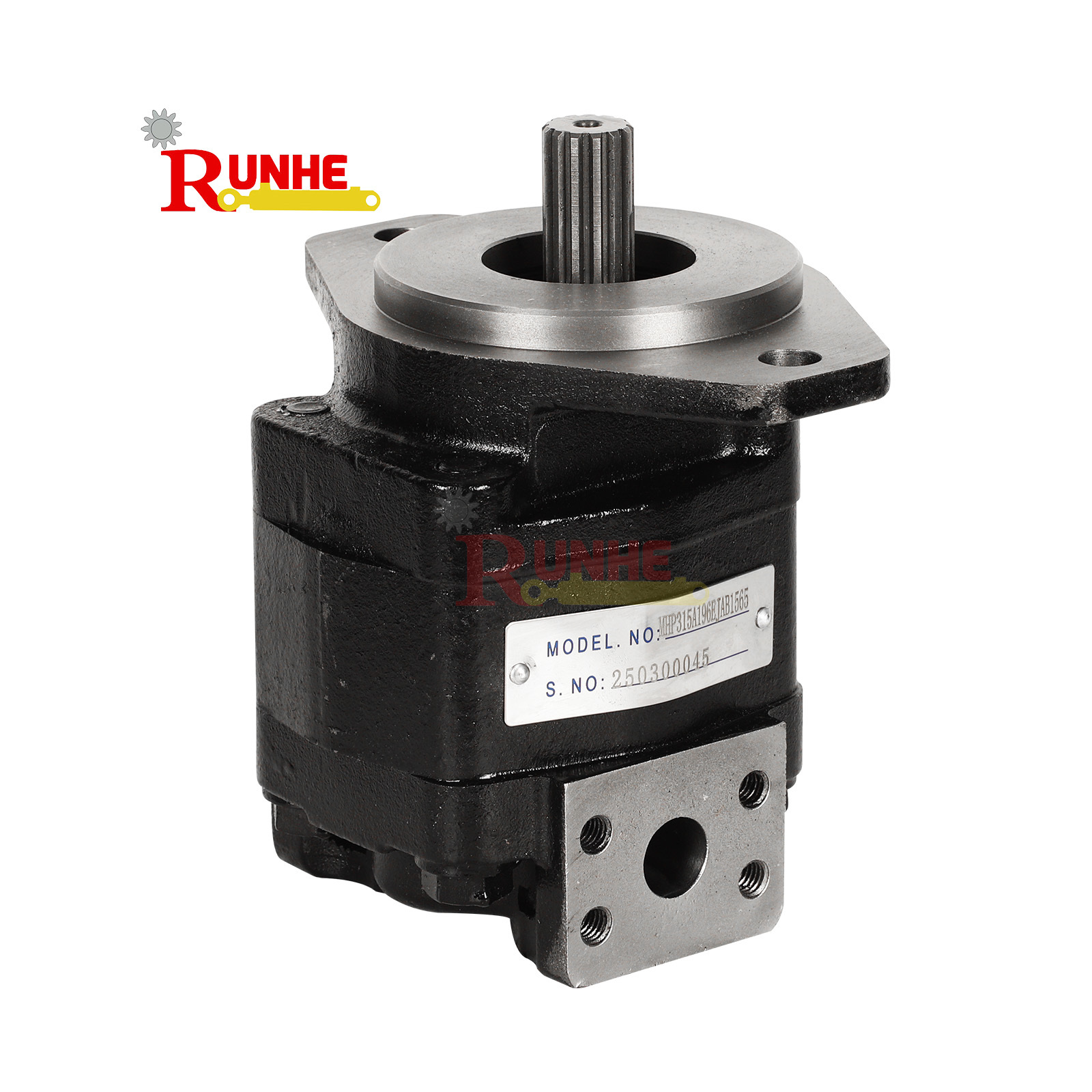

MHM315A196EJAB1565 Replacement For Mobile Construction Equipment Hydraulic Gear Motor

Hydraulic Gear  Motor Introduction

Model MHM315A196EJAB1565 is heavy-duty ductile cast iron external hydraulic gear motor of MHM75 series, specially designed for drive systems of mobile construction machinery. The prefix MHM stands for hydraulic gear motor, different from MHP gear pump, they cannot be interchanged. It adopts three-piece integrated ductile iron housing, fully identical SAE mounting flange, port size, output shaft, rotation direction and seal layout as original MHM75 motor. Direct replacement without pipeline modification, widely used in dump semi-trailers, road sweepers, agricultural harvesters and auxiliary drive units of light construction equipment.

Hebei Runhe Hydraulic Machinery Co., Ltd. – With over 12 years of experience in hydraulic technology. In addition to hydraulic gear pumps, our products also include hydraulic cylinders, hydraulic gear motors, and accessories. Meticulous manufacturing helps you expand your market.

Hydraulic Gear Motor Model List

Package

Normally, it is packaged in cardboard boxes and then shipped on pallets or wooden crates.

Hydraulic Gear Motor Advantages

• Rugged Ductile Cast Iron Housing


  Integral casting structure with excellent shock resistance and pressure resistance, stable under rated 210bar continuous pressure and max 240bar intermittent peak pressure. Hard to deform or leak under harsh construction and transportation conditions, much longer service life than aluminum gear motors.
• High Precision Wear-resistant Internal Parts


  Quenched alloy steel spur gears with balanced floating thrust plates to minimize internal leakage, volumetric efficiency keeps over 88%. Low-friction bush bearings bear heavy radial loads, wide speed range 500-3000rpm, fast response for frequent start-stop and forward-reverse switch, low operation noise.
• Good Anti-pollution & Low Maintenance Cost


  External gear structure tolerates minor impurities in hydraulic oil, less stuck failure for field machinery, no frequent filter replacement required. Simple internal structure for easy disassembly and repair, ideal bulk stock for overseas hydraulic repair shops.
• Universal Standard Installation


  Standard SAE flange, inlet/outlet ports and spline output shaft. Suffix MG042 defines exclusive seal kit, rotation direction and drain port layout. Customization available for different displacements, port types and shaft forms within MHM75 series.
• Wide Fluid Compatibility & Reliable Warranty


  Compatible with mineral hydraulic oil and water-glycol fire-resistant fluid, stable operation under high & low outdoor temperature. Every motor passes strict factory test on torque, pressure and leakage, standard 12-month warranty, extended warranty for bulk orders.

Our Company

Hebei Runhe Hydraulic Machinery Co., Ltd. is a leading manufacturer specializing in hydraulic system solutions. We are also one of the most recognized suppliers of large OEM equipment manufacturers in Hydraulic Gear Motor. With more than 12 years of industry experience.

Our products include hydraulic cylinder, hydraulic pump, hydraulic motor, widely used in automation equipment, agricultural machinery, lifting machinery, engineering vehicles, printing machinery, intelligent storage system, port ships and many other industries.In addition to the standard series of hydraulic cylinders, we can also provide customized production services according to customer drawings. Our non-standard customization capabilities meet the special needs of customers, such as special port forms, special materials, special installation, special performance, stacked hydraulic valves, etc.

Welcome to inquire about prices
