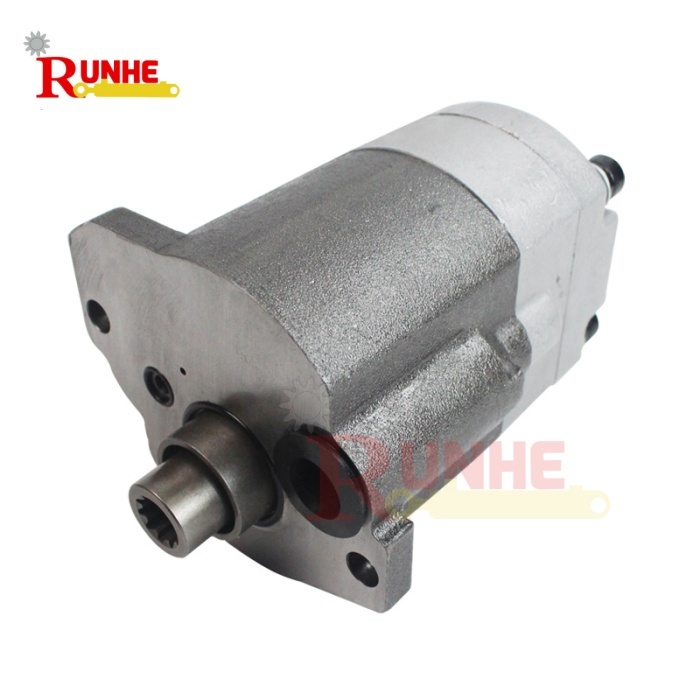

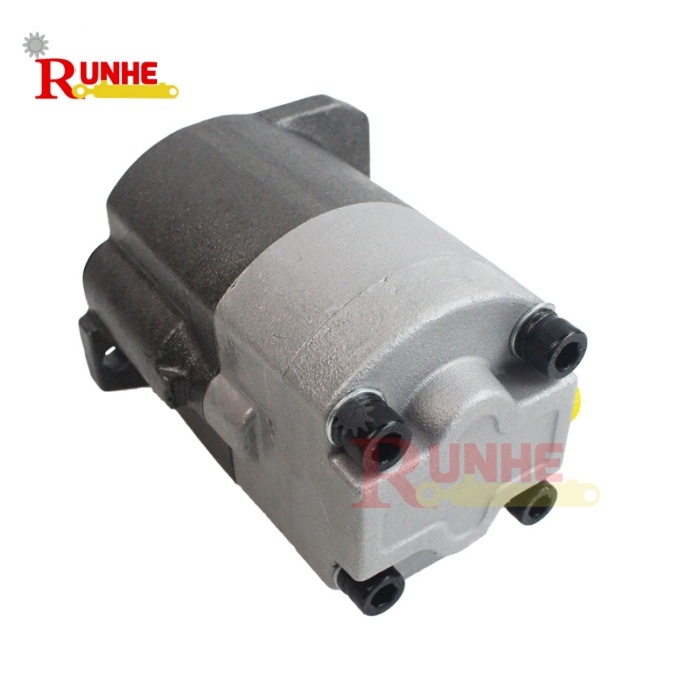

100% Compatible AP2D25 Double Tube Pilot Pump For Construction Machinery
Pilot Pump Introduction
The AP2D25 dual-line pilot pump is primarily used as an auxiliary pump (replenishing/pilot pump) in 5-8 ton mini hydraulic excavators. It is compatible with brands, and is used in conjunction with the AP2D25 variable displacement piston main pump. Its dual-line design provides independent ports, ensuring the stability and redundancy of the pilot control system. Its main function is to supply low-pressure pilot oil to the handle, multi-way valve, and main pump variable displacement mechanism, while also replenishing system leaks, achieving sensitive and smooth operation. It is widely applicable to models such as DH55/DH60/DX60, R55/R60, SK55/SK60, and EC55/EC60, offering reliable performance and high durability, making it an ideal component for the maintenance and replacement of hydraulic systems in mini excavators.
This pilot pump series stands out for its excellent adaptability. Multiple models within the range offer various mounting configurations, connection standards, and installation orientations. This flexibility makes the whole series a practical choice for OEMs and aftermarket applications alike.
Hebei Runhe Hydraulic Machinery Co., Ltd. is a top hydraulic solutions provider. With 12+ years of experience, it manufactures hydraulic products for printing, intelligent storage and port sectors. It offers customization for special performance and installation, guided by customer-oriented values.
Pilot Pump Parameters
|
Model
|
Nominal displacement (mL/r)
|
Pressure(Mpa)
|
Speed(r/min)
|
Volumetric
Efficiency
(≥%)
|
Weight
(kg)
|
|
Rated
|
Pull
|
Optimun speed
|
Speed range
|
|
AP2D25
|
16/4.5
|
20/5
|
25/8
|
1500~2500
|
600~3000
|
92
|
5.6
|
|
Involute spline spec.
|
|
Teeth
|
10
|
|
D.P
|
16/32
|
|
Pressure Angle
|
30°
|
|
Major Circle
|
ϕ17(Up: 0 Down: -0.13)
|
|
Minor Circle
|
ϕ13.8
|
Service
- Quality Assurance: Utilizing high-precision machining processes and premium raw materials, each machine undergoes multiple rigorous tests before leaving the factory, and comes with an original manufacturer's warranty and complete inspection reports.
- Technical Guidance: Free detailed installation manuals, model selection consultation, online video guidance, and remote fault diagnosis support are provided.
- Worry-Free After-Sales Service: Enjoy a 12-month warranty on the entire machine, followed by lifetime technical consultation and preferential spare parts supply after the warranty period.
- Customization Support: Professionally accepting OEM/ODM orders, we can provide personalized designs and exclusive solutions based on your working conditions.
- Sufficient Inventory: Popular models are always in stock, ensuring prompt delivery for urgent needs and reducing your waiting time.
FAQ
Q: What is the warranty period?
A: We offer a one-year warranty.
Q: Can this pilot pump directly replace the original?
A: Yes, the high-quality compatible pilot pump has the same installation dimensions and performance parameters as the original, and can be directly replaced without modifying the piping.
Q: If the product fails after purchase, how to get after-sales service?
A: You can contact us at any time through the contact information on the platform or by calling the after-sales service hotline.
Q: I couldn't find my model. Can I still use it?
A: We recommend providing your excavator's specific model number, a photo of the main pump, or the original pump's nameplate information. We can help you confirm compatibility free of charge.
