Compact Structure Excavator Pilot Pump K3V112 For R210 DH215 SK200 EC210

Pilot Pump Introduction

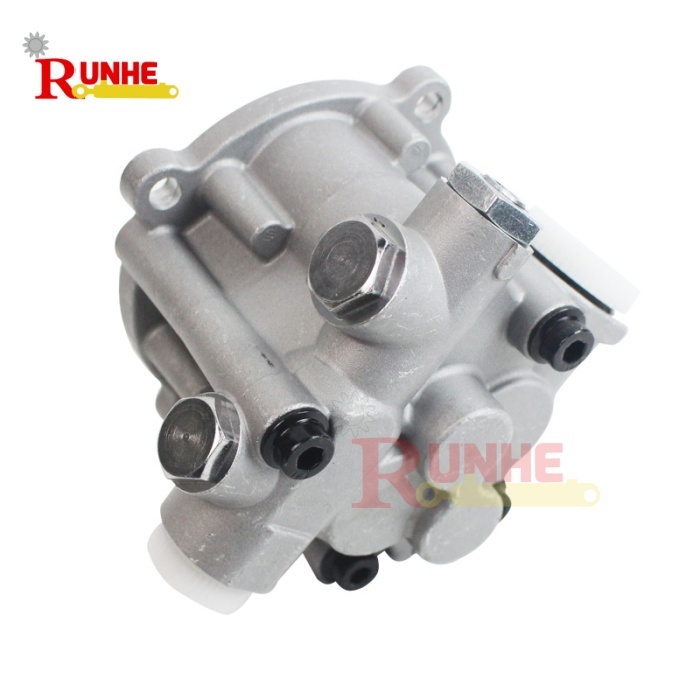

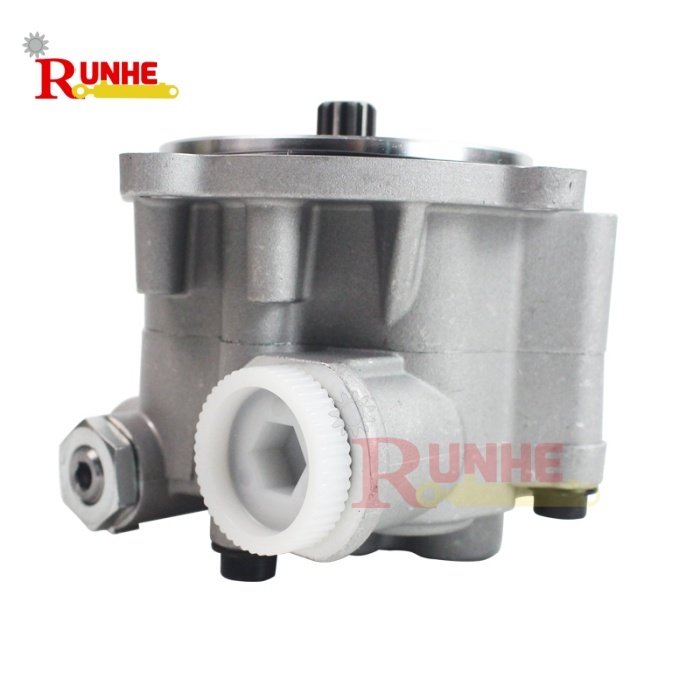

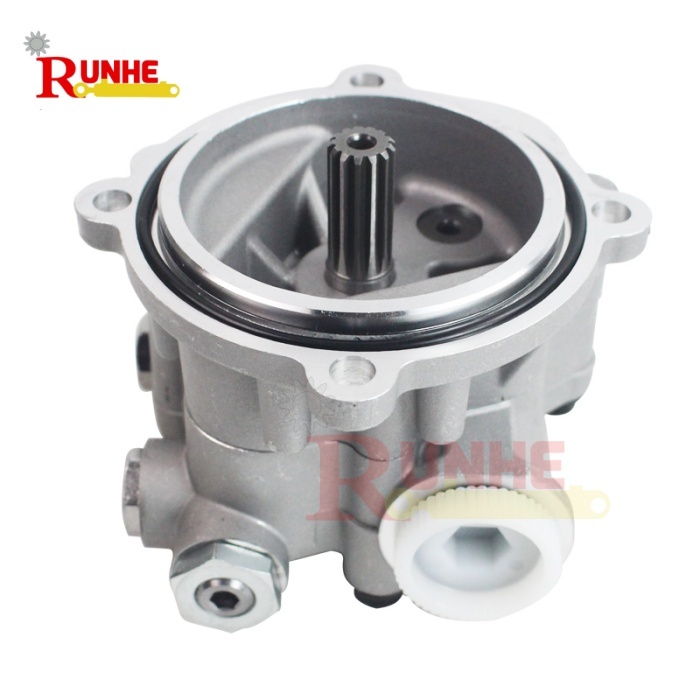

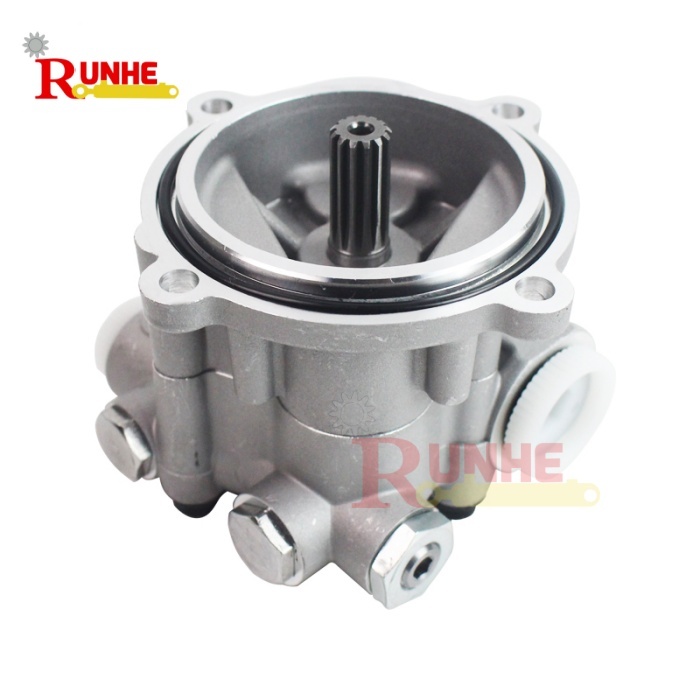

The pilot pump K3V112 is a gear-type pilot pump that complements the K3V series swash-plate axial piston variable main pump. It is typically installed at the rear end of the main pump in a tandem configuration, with a 13-tooth input spline.The pump features a compact structure, low noise, and high resistance to pressure shocks. Its primary function is to provide a stable pilot control oil source for the hydraulic system, supporting the main pump's variable displacement regulation, power regulation, pilot operation of control valves, and system oil replenishment.This ensures precise flow and pressure response, smooth and reliable operation under complex working conditions in excavators, while improving overall efficiency and service life.

The pilot pump series supports machine builders who need dependable control components without excessive complexity. It delivers the necessary pilot pressure and flow characteristics required for safe and efficient operation of today’s hydraulic systems.

Hebei Runhe Hydraulic is a top hydraulic solutions provider. With over 12 years of expertise, it offers hydraulic cylinders, pumps and motors for various industries. It provides non-standard customization for special installation and performance, following target-orientated working principles.

Pilot Pump Parameters

Pilot Pump Applications

The K3V112 pilot pump is primarily suitable for medium to large hydraulic excavators in the 20-30 ton class. As a rear-mounted tandem component of the main pump, it provides pilot control oil pressure, supporting variable displacement adjustment and system oil replenishment.

Commonly applicable models include:

• R210, R215, R220, R225 series (e.g., R210-7, R220LC-9, R225-7)
• DH215, DH220, DH225, DX225, DX260 series (e.g., DH220-5, DX225LC)
• SK200, SK210, SK230, SK250 series (e.g., SK200-8, SK210-6E, SK230-6)
• EC210 and EC240 series (such as EC210B and EC240B)
• SH200, SH210, and SH240 series (such as SH210-5)
• ZX200, ZX210, ZX230 series (e.g., ZX200-3)
• PC200, PC220 series (e.g., PC200-8)
• 320C, 320D and some other models
• SY215, SY235 series

Package

Normally, it is packaged in cardboard boxes and then shipped on pallets or wooden crates.
